Spade drills by Karnasch with exchangeable solid carbide/powder steel cutting heads

The premium quality spade drills with quick-change function for quick exchanging of the cutting heads. Particularly suitable for CNC machines such as pillar drilling machines or radial drilling machines.

Reduce your costs per drilling with Karnasch spade drills and increase the efficiency of your production. Karnasch's range of spade drills is the efficient solution for drilling with exchangeable cutting heads. Karnasch spade drills are highly efficient drilling tools with outstanding performance parameters in terms of tool life and production tolerance. Spade drills replace the outdated drilling technology of drilling tools consisting entirely of HSS / HSS-Co cobalt / powder steel and represent an excellent addition to the range of solid carbide drills.

1

Stainless steel, steel and cast iron

2

Aluminum, brass and copper

3

Stainless steel, high-strength steel and hardened steel

4

All types of cast iron

5

Aluminum, brass and copper

6

Abrasive materials such as GRP/CRP or graphite

Powder steel spade drills for machining of stainless steel, steel and cast iron

  • From Ø 9.5 mm to 114 mm
  • Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
  • Specially adjusted coating

Powder steel spade drills for machining of aluminum, brass and copper

  • From Ø 9.5 mm to 114 mm
  • Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
  • Specially adjusted coating

Carbide spade drills for machining of stainless steel, high-strength steel and hardened steel

  • From Ø 9.5 mm to 35 mm
  • Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
  • Specially adjusted coating

Carbide spade drills for machining of all types of cast iron

  • From Ø 9.5 mm to 35 mm
  • Coated carbide
  • Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill

Carbide spade drills for machining of aluminum, brass and copper

  • From Ø 9.5 mm to 35 mm
  • Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
  • Specially adjusted coating

Carbide spade drills for machining of abrasive materials such as GRP/CRP or graphite

  • From Ø 9.5 mm to 35 mm
  • Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
  • Specially adjusted coating

Advantages of spade drills with quick-change system

Karnasch spade drills consist of two components, the tool holder and the cutting inserts. The spade drills also have an internal coolant supply, which ensures excellent chip removal, even when drilling deep holes.

Spade drills are particularly suitable for CNC machines such as pillar drilling machines and radial drilling machines as well as all traditional or manual drilling machines. Learn more about the advantages of Karnasch spade drills in the following overview.

  1. 1. Only 14 holders are required to cover the diameter range Ø 9.5 - 114 mm.
  2. 2. Internal coolant supply for excellent chip removal even when deep drilling.
  3. 3. The high-precision connection between holder and cutting insert guarantees narrowest tolerances and cutting inserts that are easy to change.
  4. 4. The cutting inserts are made of powder steel or carbide. All cutting inserts also have coatings that are optimized for their intended uses. This combination results in a significantly higher cutting performance and tool life.
  5. 5. Due to the quick exchange of the cutting inserts, the spade drill is immediately ready for use again. It is not necessary, as in the case of conventional steel drills, to recondition or sharpen the complete drill.
  6. 6. The optimized XR cross-sectional cutting edge grinding on the cutting inserts reduces the cutting forces significantly and improves the stability of the entire cutting insert.
  7. 7. The chip breaker results in better chip removal and a lower cutting force.


Karnasch Spade drills - UP-TO-DATE TECHNOLOGY



Karnasch Premium Werkzeuge - Schnellwechsel-Funktion Icon

Cutting inserts

Quick-change function

Karnasch spade drills have a quick-change function for a quick exchange of the cutting heads.

Karnasch Premium Werkzeuge - Erhöhte Standzeit Icon

Longer tool lives due to

Internal cooling

Karnasch spade drills with internal cooling guarantee longer tool lives, an efficient chip removal and an improved cutting performance.

Karnasch Premium Werkzeuge - Durchmesserbereich Icon

Diameter range

From 9.5 mm to 114 mm

Highest precision for perfect results due to narrow engineering tolerances.

Karnasch Premium Werkzeuge - Premium Qualität Icon

Product characteristics

Premium quality

Tools by Karnasch are manufactured with extraordinary diligence and undergo expansive verification processes for quality assurance.

SPADE DRILLS - cutting inserts





Karnasch Spatenbohrer - Spatenbohrer Einsatz

Spade drills characteristics

Description of the spade drill insert

1. Chip breaker

  • Chip breakers improve chip removal and reduce cutting forces

2. Coating

  • All inserts are given special coatings

3. Chip breaker grooves

  • Reduces the chip length
  • This improves chip removal and reduces cutting forces

4. Diameter chamfer

  • Improves the stability of the cutting insert
  • Reduces wear of the external diameter of the cutting insert
  • Improves the tool's surface

5. Fixing holes

  • Safe and reliable attachment of the cutting inserts for maximum stability during the drilling process

6. Positioning slot

  • Guarantees accurate positioning of the cutting inserts during radial rotation
Karnasch Spatenbohrer - Bohrspitze

Spade drills characteristics

Description of the spade drill insert

1. Drill tip

  • The axial forces are reduced by up to 20% as compared to conventional drills due to tapered center cutting edges

2. XR cross-sectional cutting edge grinding

  • Improves the stability of the cutting edges
  • Improves the stability of the entire cutting insert

3. Two back flank surfaces

  • Reduces friction with the workpiece
  • Improves self-centering
  • Reduces axial forces
Karnasch Spatenbohrer - Einsatzbereich

Spade drills characteristics

Spade drill application ranges

Spade drills are the ideal drilling tools for all modern CNC machines such as:

  • Numerically controlled pillar drilling machines / radial drilling machines
  • Numerically controlled lathes
  • Machining centers

Carbide inserts are preferably used here



Spade drills are the ideal drilling tools for all traditional / manual drilling machines such as:

  • Pillar drilling machines
  • Radial drilling machines
  • All types of vertical drilling machines
  • Non-numerically controlled lathes

Powder steel inserts are preferably used here

Products in our online shop

POWDER STEEL INSERTS APPLICATION





Karnasch Spatenbohrer - Pulverstahl 25 beschichtet (Edelstahl, Stahl, Guss)

Powder steel inserts application

Powder steel 25 coated

  1. Tapered center cutting edges at 132° angle
  2. Diameter 9.5 - 65 mm / 0.374-2.559"
  3. For stainless steel, steel, cast iron
  4. For drilling in most steels and cast iron < 400HBW (1365Nmm2)
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
Karnasch Spatenbohrer - Pulverstahl 15 beschichtet (legierte Stähle, Stahl, Guss)

Powder steel inserts application

Powder steel 15 coated

  1. Tapered center cutting edges at 144° angle
  2. Diameter 64 - 114 mm / 2.520-4.488"
  3. For alloyed steels, steel, cast iron
  4. For drilling in most steels and cast iron < 350HBW (1180Nmm2)
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
Karnasch Spatenbohrer - Pulverstahl 25 beschichtet (Alu, Messing, Kupfer)

Powder steel inserts application

Powder steel 25 coated

  1. Tapered center cutting edges at 132° angle
  2. Diameter 9.5 - 65 mm / 0.374-2.559"
  3. For aluminum, brass, copper
  4. Especially for drilling all non-ferrous metals such as aluminum, brass, copper, bronze...
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
Karnasch Spatenbohrer - Pulverstahl 15 beschichtet (Alu, Messing, Kupfer)

Powder steel inserts application

Powder steel 15 coated

  1. Tapered center cutting edges at 144° angle
  2. Diameter 64 - 114 mm / 2.520-4.488"
  3. For aluminum, brass, copper
  4. Especially for drilling all non-ferrous metals such as aluminum, brass, copper, bronze...
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
Karnasch Spatenbohrer - Hartmetall 20/30 beschichtet (Edelstahl, hochfester Stahl, gehärteter Stahl)

Carbide inserts application

Carbide 20/30 coated

  1. Tapered center cutting edges at 132° angle
  2. Diameter 9.5 - 35mm / 0.374-1.378"
  3. For stainless steel, high-strength steel, hardened steel
  4. For drilling of free machining steel, for steels with medium and low carbon  content, steel alloys, tool steel, high-strength and hardened steels
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
Karnasch Spatenbohrer - Hartmetall 20/30 beschichtet (alle Gussarten)

Carbide inserts application

Carbide 20/30 coated

  1. Tapered center cutting edges at 132° angle (cast)
  2. Diameter 9.5 - 35 mm / 0.374-1.378"
  3. For all types of cast iron
  4. For drilling of high-temperature and titanium alloys, cast iron with nodular graphite, SG iron, gray and white cast iron, special stainless steels
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
Karnasch Spatenbohrer - Hartmetall 20/30 beschichtet (Alu, Messing, Kupfer)

Carbide inserts application

Carbide 20/30 coated

  1. Tapered center cutting edges at 132° angle
  2. Diameter 9.5 - 35 mm / 0.374-1.378"
  3. For aluminum, brass, copper
  4. For drilling of all non-ferrous metals such as aluminum casting, wrought aluminum, aluminum
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill
Karnasch Spatenbohrer - Hartmetall 20/30 beschichtet (abrasive Materialien)

Carbide inserts application

Carbide 20/30 coated

  1. Tapered center cutting edges at 144° angle
  2. Diameter 9.5 - 35 mm / 0.374-1.378"
  3. For abrasive materials such as: GRP, CRP, graphite
  4. Especially for drilling of abrasive materials such as glasss fiber and und carbon fiber materials  (GRP, CRP) as well as graphite
  5. Also suitable for: Allied Maxcut (AMEC), YG-1, ARNO-Shark-Drill

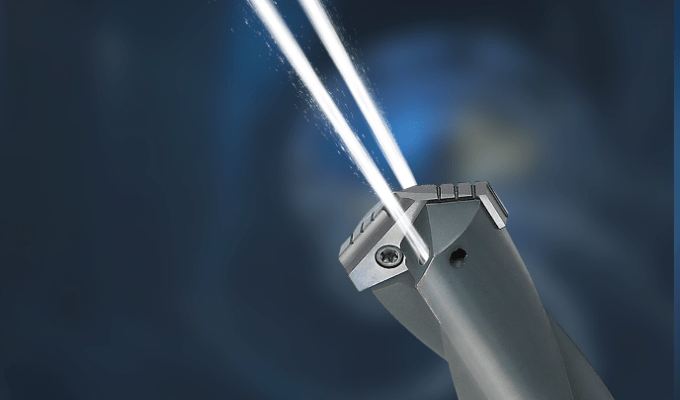

KARNASCH INTERNAL COOLING

Drills with internal cooling for optimal cooling and lubrication

Maximum resilience for challenging applications.

Karnasch internal cooling guarantees optimal cooling results and presents obvious advantages as compared to external cooling. On the one hand, the cooling of the cutting edge can individually be optimized, with the result that the heat development is considerably reduced. The special power chamber by Karnasch ensures an increased coolant leak - at the same pressure but also at low pressure. On the other hand, Karnasch internal cooling removes the chips more efficiently and improves the overall cutting performance significantly. In addition to higher productivity, Karnasch internal cooling enhances tool lives and prevents premature tool breaking, which in turn leads to considerable cost savings.

Advantages of the Karnasch cooling channel drills

  • Optimal tool life even under highest loads (optimal cooling and lubricating effect)
  • Increased drilling speed
  • Chips are more easily removed from the drilling range
