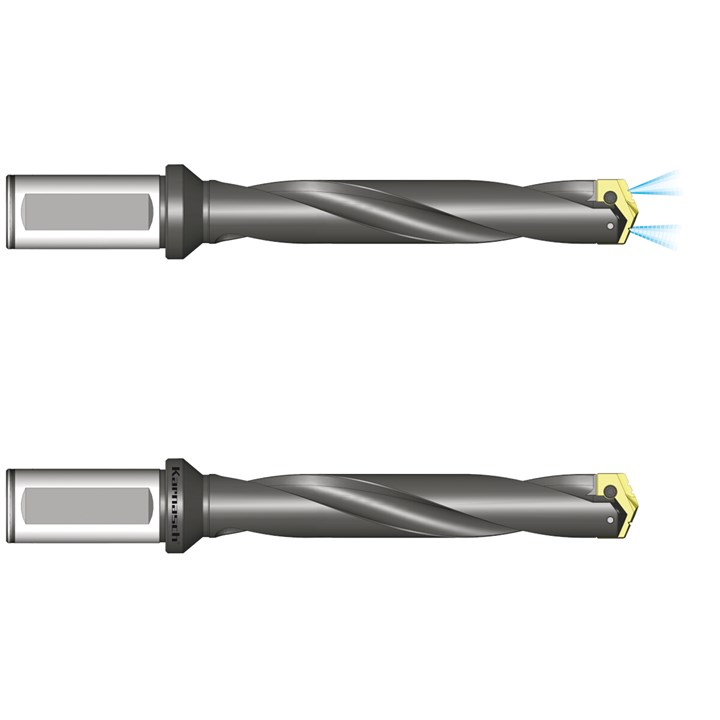

Spade Drill Holder, Helical Fluted, Lateral Fixation Type Flange, Shank DIN 1835-B

221010_P
More details on catalogue page number 311 -  Click to view
Spade Drill Holder, Helical Fluted, Lateral Fixation Type Flange, Shank DIN 1835-B Spade Drill Holder, Helical Fluted, Lateral Fixation Type Flange, Shank DIN 1835-B
From £184.53 Excl VAT (£219.59 incl VAT)
Loading Variations
-
+
Reduce your drilling cost by using karnasch spade drill spade drill is one of the main interchangeable insert drill from karnasch.
Read full description

    Product Description

    Reduce your drilling cost by using KARNASCH spade drill

    Spade drill is one of the main interchangeable insert drill from KARNASCH.

    lt is a high efficient drilling tool with superior performance, designing to substitute those traditional hole drilling products with low efficiency and inconvenient usage.

    lt consists of two parts - holder and inserts.

    Its advantages are:

    1. Only 14 holders can meet the demand for drilling holes from Diameter 9.5 to Diameter 114 mm.

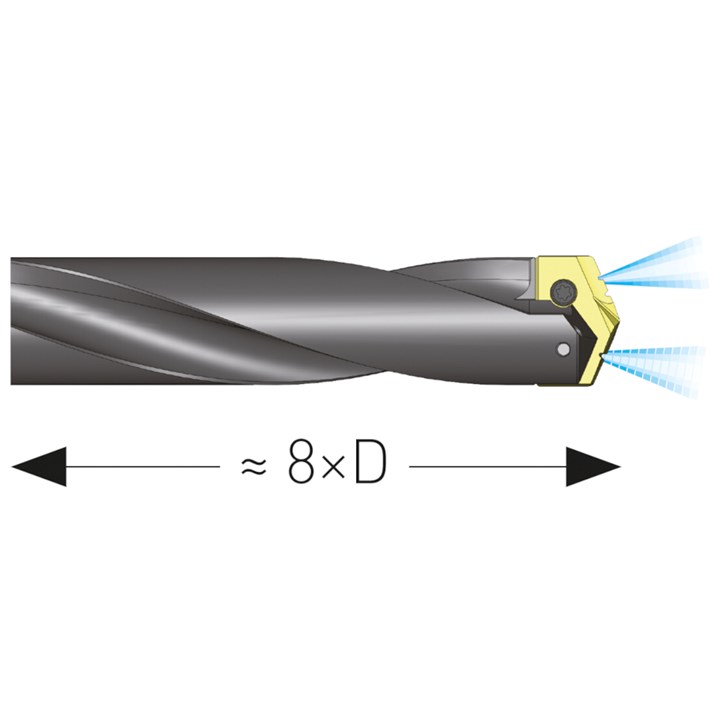

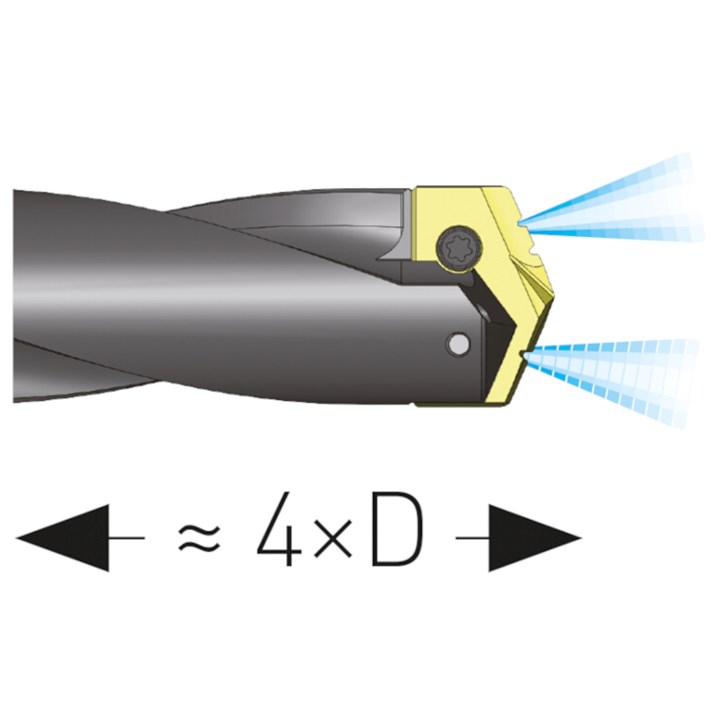

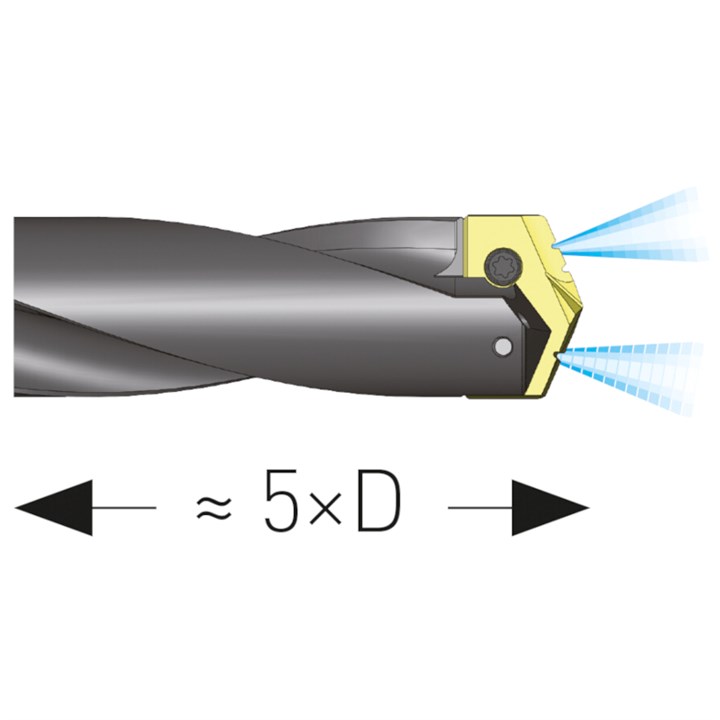

    2. Inner cooling design of holder enable excellent chip removal and good cooling when drilling deep holes.
    3. High accuracy of the connections between the inserts and holders ensures high clamping accuracy, and easy to replace inserts.
    4. Inserts are made of powder high speed steel or carbide, combined with various coatings. This improves extremely the toollife and drilling speed in comparison to normal twist drills.
    5. Replaceable structure, which is more convenient. No need of regrinding drill on the scene.
    6. New type XR edge reduce the cutting resistance greatly.
    7. Inserts have the function of chip-breaker, which improves the stability of holes drilling.




    Spade drill is the perfect drilling tool match for all kinds of modern CNC machines such as:

    • Numerically controlled planar drill
    • Numerically controlled lathe
    • Machining centers

    Spade drill is the perfect drilling tool match for all kinds of traditional / manual drilling machines such as:

    • Pillar drilling machines
    • Radial drilling machines
    • Vertical driller
    • Non numerically controlled lathe
