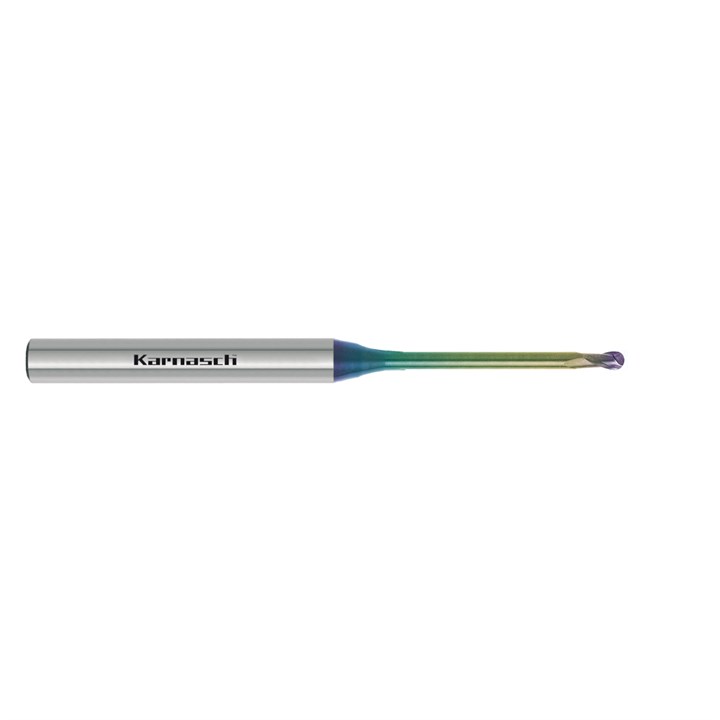

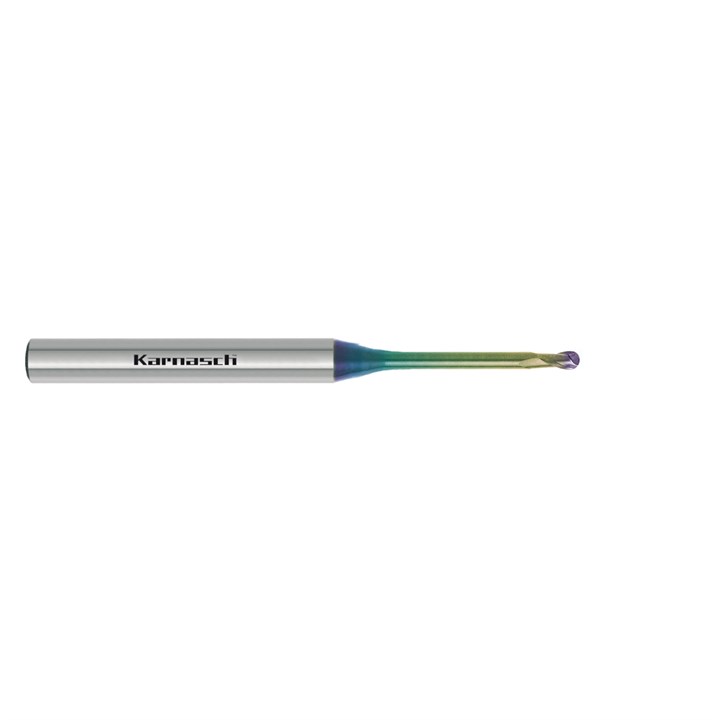

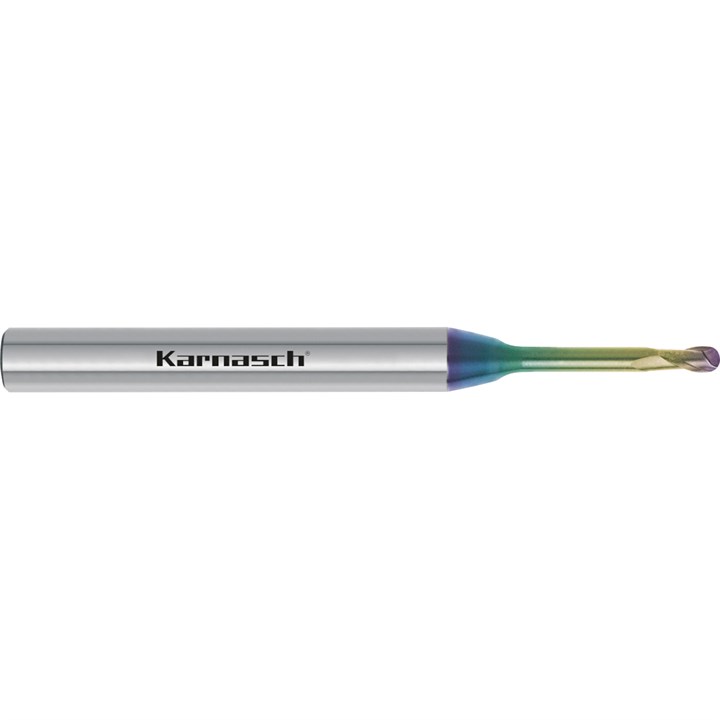

Solid Carbide Minature Ball Nose Slot Mill, <15xD, 4mm Shank
306204_P
More details on catalogue page number 34 -
Click to view
£0.00
From £57.14 Excl VAT
(£68.00 incl VAT)
Live prices currently unavailable, list price shown.
Solid carbide minature ball nose slot mill, < 15xd diameter cutting depth, shank 4mm.
Product Description
Solid carbide minature ball nose slot mill, < 15xD diameter cutting depth, shank 4mm.

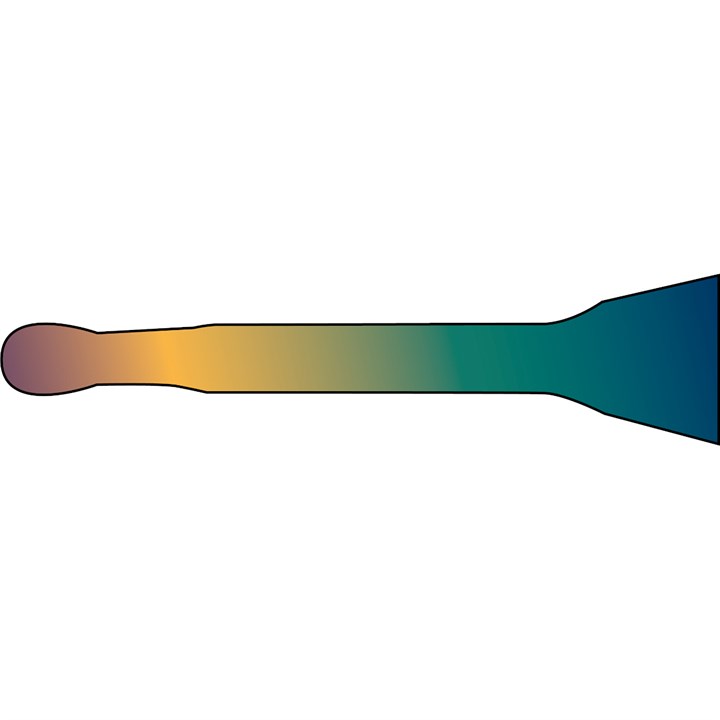

NHC-7000 Coating
Best machining results in all non-ferrous metals, plastics and CFRP/GFRP.
- Coating technology: PACVD Plasma Assisted Chemical Vapour Deposition
- Micro hardness: 7000 HV0.05
- Coating material: DLC
- Coating thickness: <0.7µ
- Max. operating temperature: 900 degrees C
This outstanding NHC-7000 coating simplifies the processing of non-ferrous metals, plastics and GRP/CRP. The very thin, very smooth and extremely hard coating enables exceptional tool life and surfaces, even with aluminum >6% Si.
Materials Information:
- Alloys
- Brass
- Bronze
- Composites
- Copper
- Nickel
- Titanium
- Aluminum below 6%
- Aluminum below 12%
- Plastics
- Ampco
- Nickel below 500 N/MM2
- Makrolon
- UHMWPE - Ultra-high-molecular-weight polyethylene
- PMMA - Poly (methyl methacrylate)
Product Downloads
There are no download types with downloads for this product.
Related Products
No related products
Alternative Products
306257_P
Solid carbide minature ball nose slot mill, <15xd diameter cutting depth, shank 4mm.
From £32.48 Excl VAT
306264_P
Solid carbide minature ball nose slot mill, 2-30 x diameter cutting depth shank 6mm.
From £33.84 Excl VAT
306270_P
Solid carbide miniature ball nose mill, with interior cooling holes in shank, shank 6mm.
From £70.01 Excl VAT
Product Code
D1 (mm)
D2 (mm)
D3 (mm)
L3 (mm)
Radius
L2 (mm)
L1 (mm)
Coating
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
R2 - Neck to Shank
Version
Z (Cutting Edges)
Product Code
3062040010002
Out Of Stock
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,08
L3 (mm)
0,2

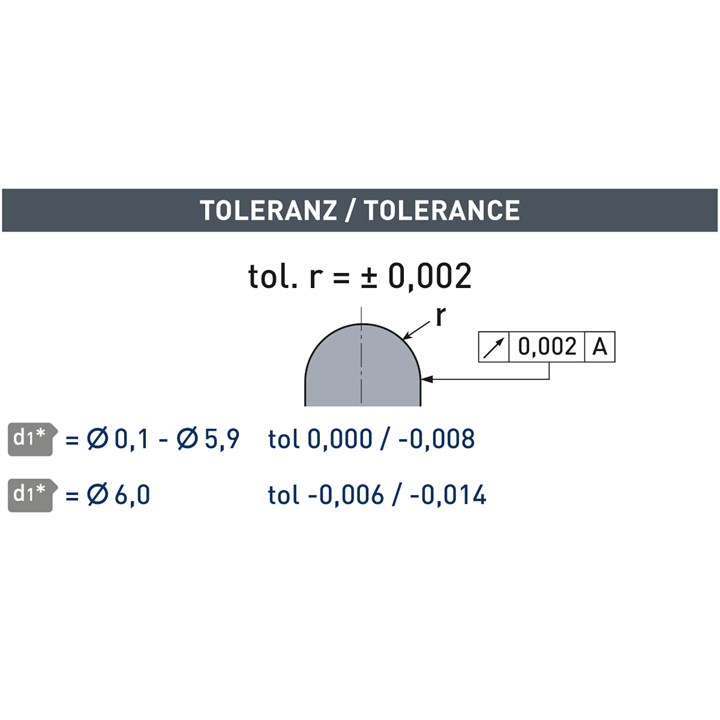

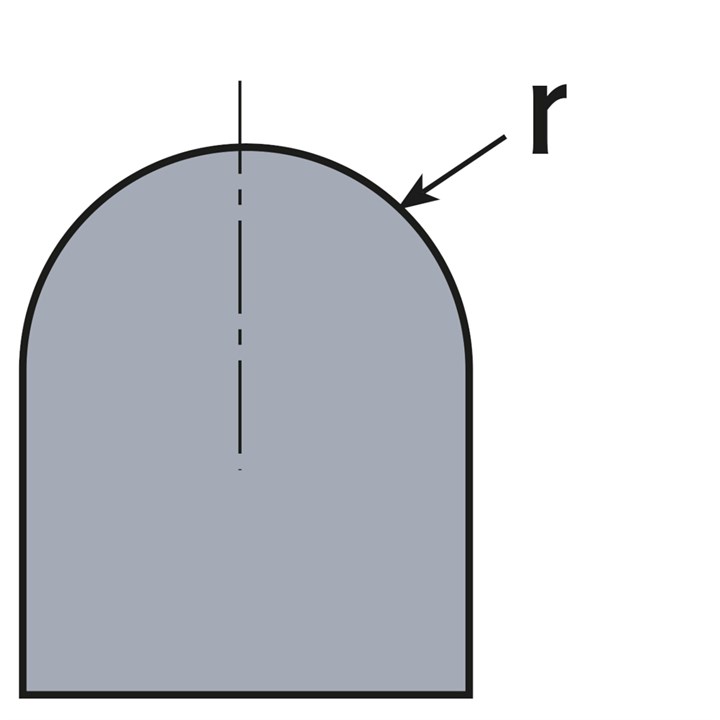

Radius
0,05
L2 (mm)
0,08
L1 (mm)
45
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,36
Incline Angle 1.0
0,38
Incline Angle 2.0
0,42
Incline Angle 3.0
0,46
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040010003
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,08
L3 (mm)
0,3
Radius
0,05
L2 (mm)
0,08
L1 (mm)
45
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,47
Incline Angle 1.0
0,49
Incline Angle 2.0
0,54
Incline Angle 3.0
0,58
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040010004
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,08
L3 (mm)
0,4
Radius
0,05
L2 (mm)
0,08
L1 (mm)
45
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,57
Incline Angle 1.0
0,6
Incline Angle 2.0
0,65
Incline Angle 3.0
0,7
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040010005
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,08
L3 (mm)
0,5
Radius
0,05
L2 (mm)
0,08
L1 (mm)
45
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,68
Incline Angle 1.0
0,71
Incline Angle 2.0
0,77
Incline Angle 3.0
0,82
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040020005
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
0,5
Radius
0,1
L2 (mm)
0,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,7
Incline Angle 1.0
0,73
Incline Angle 2.0
0,79
Incline Angle 3.0
1,45
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040020010
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
1
Radius
0,1
L2 (mm)
0,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,23
Incline Angle 1.0
1,27
Incline Angle 2.0
1,35
Incline Angle 3.0
2,11
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040020015
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
1,5
Radius
0,1
L2 (mm)
0,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,74
Incline Angle 1.0
1,92
Incline Angle 2.0
2,05
Incline Angle 3.0
2,75
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040020020
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
2
Radius
0,1
L2 (mm)
0,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,26
Incline Angle 1.0
2,33
Incline Angle 2.0
2,48
Incline Angle 3.0
2,65
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040030010
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1
Radius
0,15
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,52
Incline Angle 3.0
1,63
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040030015
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1,5
Radius
0,15
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,85
Incline Angle 1.0
1,94
Incline Angle 2.0
2,09
Incline Angle 3.0
2,23
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040030020
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
2
Radius
0,15
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040030025
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
2,5
Radius
0,15
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,9
Incline Angle 1.0
3,02
Incline Angle 2.0
3,22
Incline Angle 3.0
3,44
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040030030
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
3
Radius
0,15
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040040010
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
1
Radius
0,2
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,52
Incline Angle 3.0
1,63
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040040020
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
2
Radius
0,2
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040040030
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
3
Radius
0,2
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040040040
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
4
Radius
0,2
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,46
Incline Angle 1.0
4,61
Incline Angle 2.0
4,91
Incline Angle 3.0
5,25
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040050010
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
1
Radius
0,25
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,52
Incline Angle 3.0
1,63
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040050020
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
2
Radius
0,25
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040050030
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
3
Radius
0,25
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040050040
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
4
Radius
0,25
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,46
Incline Angle 1.0
4,61
Incline Angle 2.0
4,91
Incline Angle 3.0
5,25
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040050050
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
5
Radius
0,25
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,5
Incline Angle 1.0
5,67
Incline Angle 2.0
6,04
Incline Angle 3.0
6,45
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040050060
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
6
Radius
0,25
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,53
Incline Angle 1.0
6,73
Incline Angle 2.0
7,17
Incline Angle 3.0
7,66
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040060020
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
2
Radius
0,3
L2 (mm)
0,6
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,54
Incline Angle 1.0
2,7
Incline Angle 2.0
2,97
Incline Angle 3.0
3,19
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040060030
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
3
Radius
0,3
L2 (mm)
0,6
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,61
Incline Angle 1.0
3,8
Incline Angle 2.0
4,12
Incline Angle 3.0
4,4
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040060040
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
4
Radius
0,3
L2 (mm)
0,6
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,67
Incline Angle 1.0
4,89
Incline Angle 2.0
5,25
Incline Angle 3.0
5,61
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040060050
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
5
Radius
0,3
L2 (mm)
0,6
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,72
Incline Angle 1.0
5,97
Incline Angle 2.0
6,38
Incline Angle 3.0
6,82
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040060060
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
6
Radius
0,3
L2 (mm)
0,6
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,77
Incline Angle 1.0
7,04
Incline Angle 2.0
7,5
Incline Angle 3.0
8,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040060080
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
8
Radius
0,3
L2 (mm)
0,6
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,85
Incline Angle 1.0
9,17
Incline Angle 2.0
9,76
Incline Angle 3.0
10,44
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040080020
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
2
Radius
0,4
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,54
Incline Angle 1.0
2,7
Incline Angle 2.0
2,97
Incline Angle 3.0
3,19
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040080040
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
4
Radius
0,4
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,67
Incline Angle 1.0
4,89
Incline Angle 2.0
5,25
Incline Angle 3.0
5,61
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040080060
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
6
Radius
0,4
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,77
Incline Angle 1.0
7,04
Incline Angle 2.0
7,5
Incline Angle 3.0
8,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040080080
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
8
Radius
0,4
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,85
Incline Angle 1.0
9,17
Incline Angle 2.0
9,76
Incline Angle 3.0
10,44
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040080100
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
10
Radius
0,4
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,93
Incline Angle 1.0
11,29
Incline Angle 2.0
12,02
Incline Angle 3.0
12,85
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100020
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
2
Radius
0,5
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,58
Incline Angle 1.0
2,73
Incline Angle 2.0
2,99
Incline Angle 3.0
3,21
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100030
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
3
Radius
0,5
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,64
Incline Angle 1.0
3,83
Incline Angle 2.0
4,13
Incline Angle 3.0
4,42
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100040
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
4
Radius
0,5
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,7
Incline Angle 1.0
4,91
Incline Angle 2.0
5,26
Incline Angle 3.0
5,63
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100050
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
5
Radius
0,5
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,75
Incline Angle 1.0
5,99
Incline Angle 2.0
6,39
Incline Angle 3.0
6,83
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100060
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
6
Radius
0,5
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,79
Incline Angle 1.0
7,06
Incline Angle 2.0
7,52
Incline Angle 3.0
8,04
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100080
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
8
Radius
0,5
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,88
Incline Angle 1.0
9,19
Incline Angle 2.0
9,78
Incline Angle 3.0
10,46
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100100
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
10
Radius
0,5
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,95
Incline Angle 1.0
11,31
Incline Angle 2.0
12,04
Incline Angle 3.0
12,87
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100120
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
12
Radius
0,5
L2 (mm)
0,8
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,03
Incline Angle 1.0
13,43
Incline Angle 2.0
14,3
Incline Angle 3.0
15,28
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100150
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
15
Radius
0,5
L2 (mm)
0,8
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,12
Incline Angle 1.0
16,61
Incline Angle 2.0
17,68
Incline Angle 3.0
18,9
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100200
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
20
Radius
0,5
L2 (mm)
0,8
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,27
Incline Angle 1.0
21,91
Incline Angle 2.0
23,33
Incline Angle 3.0
24,94
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040100180
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
18
Radius
0,5
L2 (mm)
0,8
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
19,21
Incline Angle 1.0
19,79
Incline Angle 2.0
21,07
Incline Angle 3.0
22,52
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040120060
IN STOCK
D1 (mm)
1,2
D2 (mm)
4
D3 (mm)
1,15
L3 (mm)
6
Radius
0,6
L2 (mm)
1
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,82
Incline Angle 1.0
7,08
Incline Angle 2.0
7,54
Incline Angle 3.0
8,06
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040120120
IN STOCK
D1 (mm)
1,2
D2 (mm)
4
D3 (mm)
1,15
L3 (mm)
12
Radius
0,6
L2 (mm)
1
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,04
Incline Angle 1.0
13,45
Incline Angle 2.0
14,31
Incline Angle 3.0
15,3
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150040
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
4
Radius
0,75
L2 (mm)
1,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,75
Incline Angle 1.0
4,96
Incline Angle 2.0
5,3
Incline Angle 3.0
5,67
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150060
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
6
Radius
0,75
L2 (mm)
1,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,84
Incline Angle 1.0
7,1
Incline Angle 2.0
7,56
Incline Angle 3.0
8,08
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150080
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
8
Radius
0,75
L2 (mm)
1,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,92
Incline Angle 1.0
9,22
Incline Angle 2.0
9,82
Incline Angle 3.0
10,49
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150100
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
10
Radius
0,75
L2 (mm)
1,2
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
11
Incline Angle 1.0
11,34
Incline Angle 2.0
12,08
Incline Angle 3.0
12,91
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150120
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
12
Radius
0,75
L2 (mm)
1,2
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,06
Incline Angle 1.0
13,46
Incline Angle 2.0
14,33
Incline Angle 3.0
15,32
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150140
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
14
Radius
0,75
L2 (mm)
1,2
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
15,13
Incline Angle 1.0
15,59
Incline Angle 2.0
16,59
Incline Angle 3.0
17,74
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150160
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
16
Radius
0,75
L2 (mm)
1,2
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
17,19
Incline Angle 1.0
17,71
Incline Angle 2.0
18,85
Incline Angle 3.0
20,15
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150180
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
18
Radius
0,75
L2 (mm)
1,2
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
19,24
Incline Angle 1.0
19,83
Incline Angle 2.0
21,11
Incline Angle 3.0
22,56
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040150200
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
20
Radius
0,75
L2 (mm)
1,2
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,3
Incline Angle 1.0
21,95
Incline Angle 2.0
23,36
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040200040
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
4
Radius
1
L2 (mm)
1,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,81
Incline Angle 1.0
5
Incline Angle 2.0
5,34
Incline Angle 3.0
5,71
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040200060
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
6
Radius
1
L2 (mm)
1,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,89
Incline Angle 1.0
7,14
Incline Angle 2.0
7,6
Incline Angle 3.0
8,12
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040200080
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
8
Radius
1
L2 (mm)
1,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,97
Incline Angle 1.0
9,26
Incline Angle 2.0
9,85
Incline Angle 3.0
10,53
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040200100
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
10
Radius
1
L2 (mm)
1,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
11,04
Incline Angle 1.0
11,38
Incline Angle 2.0
12,11
Incline Angle 3.0
12,95
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040200120
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
12
Radius
1
L2 (mm)
1,5
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,1
Incline Angle 1.0
13,5
Incline Angle 2.0
14,37
Incline Angle 3.0
15,36
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040200150
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
15
Radius
1
L2 (mm)
1,5
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,19
Incline Angle 1.0
16,68
Incline Angle 2.0
17,16
Incline Angle 3.0
18,98
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040200200
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
20
Radius
1
L2 (mm)
1,5
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,34
Incline Angle 1.0
21,98
Incline Angle 2.0
23,4
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040300050
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
5
Radius
1,5
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,9
Incline Angle 1.0
6,11
Incline Angle 2.0
6,5
Incline Angle 3.0
6,95
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040300100
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
10
Radius
1,5
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
11,07
Incline Angle 1.0
11,41
Incline Angle 2.0
12,15
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040300150
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
15
Radius
1,5
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,22
Incline Angle 1.0
16,72
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040300200
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
20
Radius
1,5
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
22,02
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040300250
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
25
Radius
1,5
L2 (mm)
3
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
26,52
Incline Angle 1.0
27,32
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040300300
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
30
Radius
1,5
L2 (mm)
3
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
31,67
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040400100
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
10
Radius
2
L2 (mm)
4
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
11,08
Incline Angle 1.0
11,41
Incline Angle 2.0
12,15
Incline Angle 3.0
12,99
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040400150
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
15
Radius
2
L2 (mm)
4
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,22
Incline Angle 1.0
16,72
Incline Angle 2.0
17,79
Incline Angle 3.0
19,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040400200
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
20
Radius
2
L2 (mm)
4
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
22,02
Incline Angle 2.0
23,44
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040400250
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
25
Radius
2
L2 (mm)
4
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
26,52
Incline Angle 1.0
27,32
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040400300
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
30
Radius
2
L2 (mm)
4
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
31,67
Incline Angle 1.0
32,62
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040500200
IN STOCK
D1 (mm)
5
D2 (mm)
6
D3 (mm)
4,9
L3 (mm)
20
Radius
2,5
L2 (mm)
5
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
22,02
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040500300
IN STOCK
D1 (mm)
5
D2 (mm)
6
D3 (mm)
4,9
L3 (mm)
30
Radius
2,5
L2 (mm)
5
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
31,67
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040500400
IN STOCK
D1 (mm)
5
D2 (mm)
6
D3 (mm)
4,9
L3 (mm)
40
Radius
2,5
L2 (mm)
5
L1 (mm)
90
Coating
PACVD/NHC-7000
Incline Angle 0.5
41,96
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040600200
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
20
Radius
3
L2 (mm)
6
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040600300
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
30
Radius
3
L2 (mm)
6
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040600400
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
40
Radius
3
L2 (mm)
6
L1 (mm)
90
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
Product Code
3062040600500
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
50
Radius
3
L2 (mm)
6
L1 (mm)
90
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Copy Cutters
Z (Cutting Edges)
2
