Cermet Tipped Circular Saw Blade, Dry-Cutter, for Mild Steel

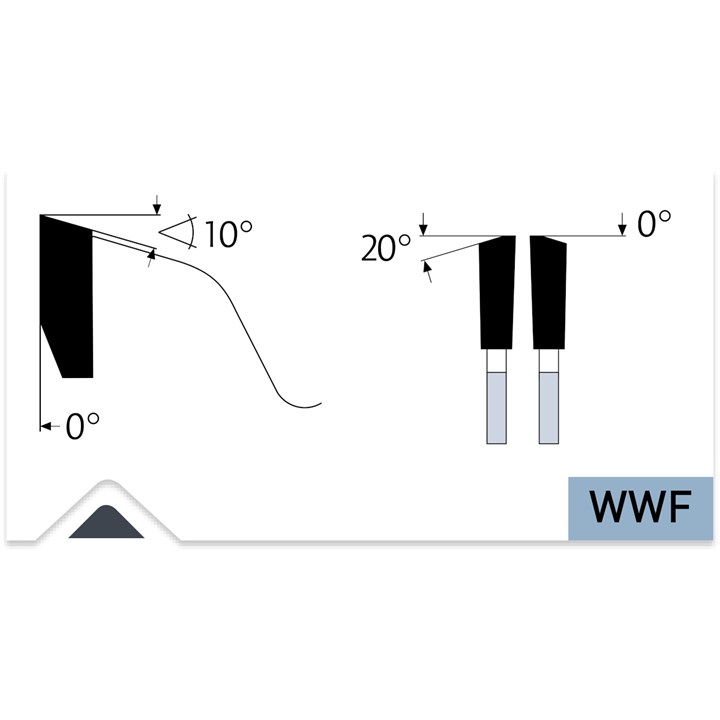

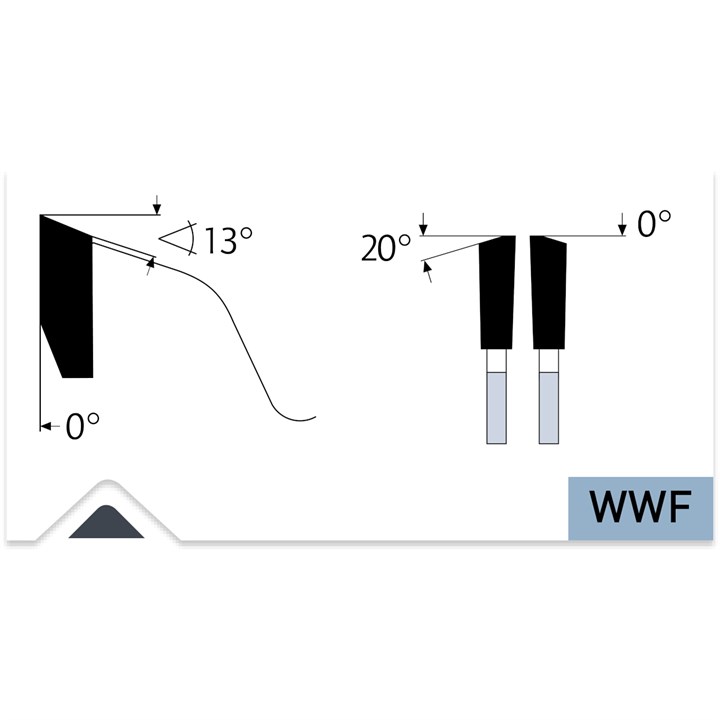

WWF = Alternate top+bevel

MACHINE:

• portable machines
• cross-cut saws
• panel and sizing saws
• mitre saws
• table and radial arm saws
• battery-driven saws
• suitable also for so-called DRY-CUTTER machines with reduced speeds such as: JEPSON, RIDGID, ELU, RYOBI.

RECOMMENDED SPEED

For steel, it is beneficial to work at reduced speeds.
Use of cutting spray or Mecut wax increases the service life.

Diameter 160-200 mm = 3500-3000 min-1/rpm
Diameter 210-250 mm = 2800-1900 min-1/rpm
Diameter 260-305 mm = 1800-1500 min-1/rpm
Diameter 350-400 mm = 1500-1000 min-1/rpm

USAGE:

The focus is on cutting profile material and sheet metal.

Profile material from 3 mm up to 8 mm wall thickness and sheet metal from 3 mm up to 10 mm thickness.

Please use here the dimension 305 mm with 60 teeth and 355 mm with 80 teeth. For all the remaining dimension we recommend: Profile material from 2 mm up to 6 mm wall thickness and sheet metal form 2 mm up to 8 mm thickness.

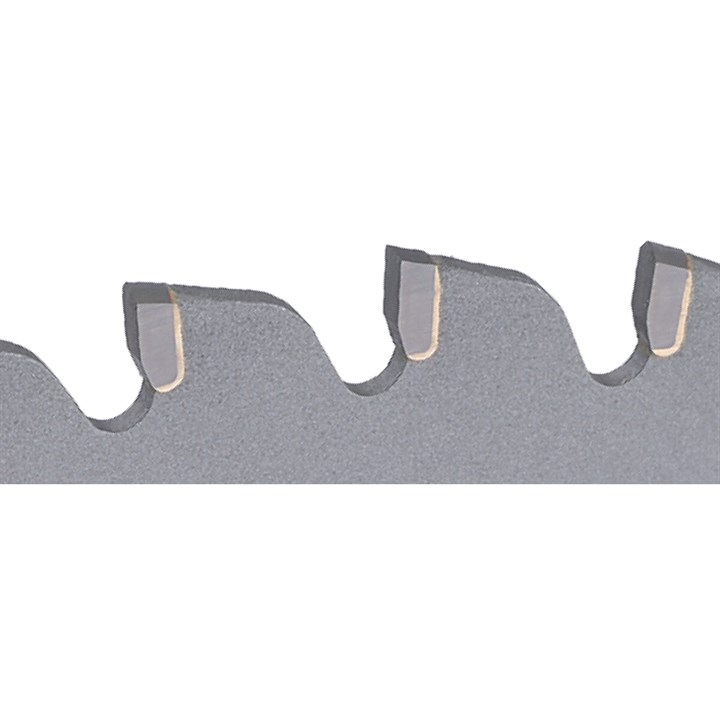

CERMET teeth (ceramics) approx. doubles the service life as compared to our Dry-Cutter mild steel Art. 10.7100.

CERMET blades needs stable, complete and vibration-free clamping of the work piece.

For other sizes, see art. 10.7100.

Cutting thin sheet up to approx. 3 mm wall thickness and sandwich material: see art. 10.7400.

Cutting stainless steel up to approx. 4 mm: see art. 10.7300.

Cutting of aluminium profiles/sheets: see art. 10.8000/11.1100/11.1120.

Cutting of wood, plastics, non-ferrous metals like aluminium, mild steels: see art. 10.8055.
