5 Piece Set, HSS-XE Countersinks 90 Degree

The flutes of Karnasch High-Performance countersinkers are always CBN ground. This guarantees: Excellent chip clearance / chatter-free working / scratch-free surface / best centering.

CONTENT:

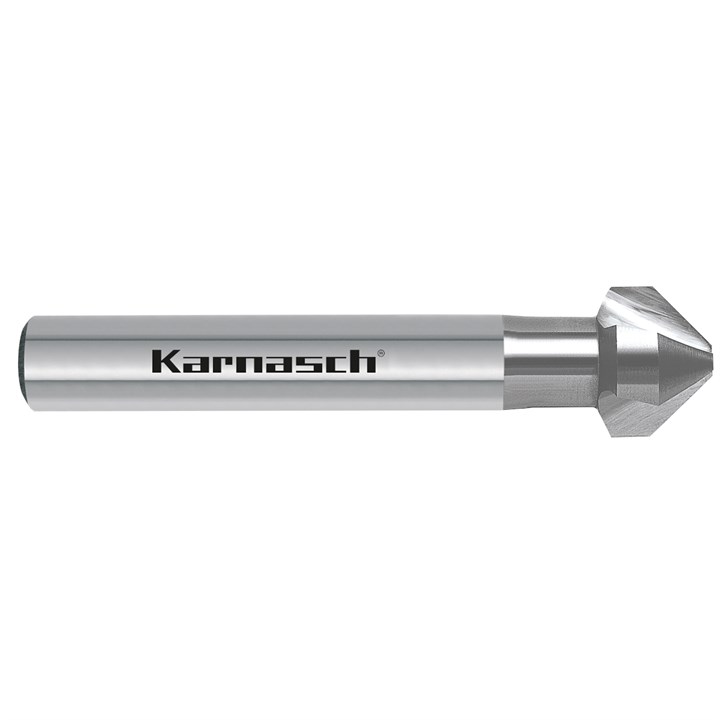

5 HSS-XE Countersink DIN 335 Type C 90Degrees, 3-Flat-Shank 201740:
1 pc each Diameter: 6,3 - 10,4 - 16,5 - 20,5 - 25 mm

HSS-XE steel:

Made of high-alloyed special steel XE“ for considerably longer service life than HSS-Steel.

3-Flat shank for:
– Excellent torque transmission
– No slippage in the drill chuck
– This results to superior cutting output

Each diameter receives its own relief angle. Result: The cutting edge is also always the highest point.

According to the diameter radially-adjusted CBN ground relief. Result: The cutting edge is always the highest point of the diameter

Axial relief produces by CBN grinding leads to a smooth and low-heat cut.

CBN deep-ground flutes leads (unlike miled grooves) to significantly smoother and sharper cutting edges. This result is: Higher cutting performance and tool life.
