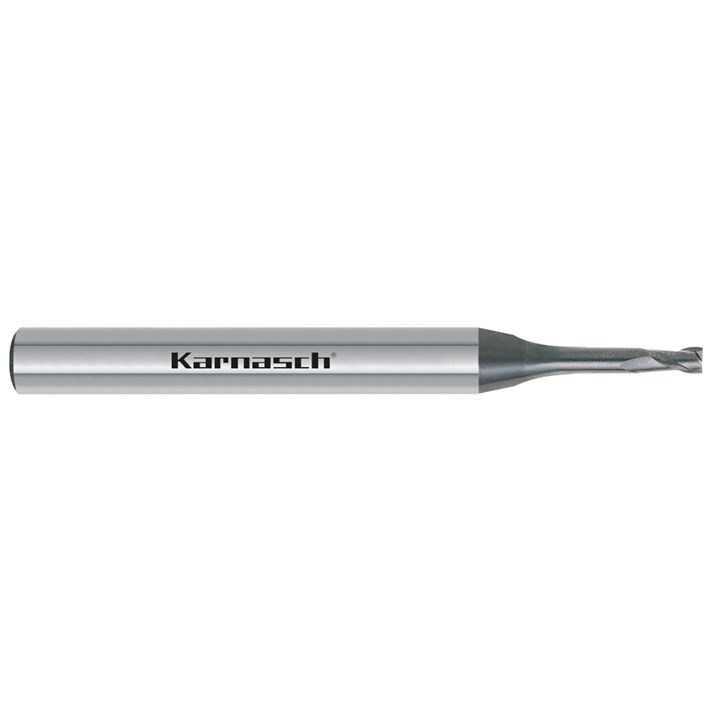

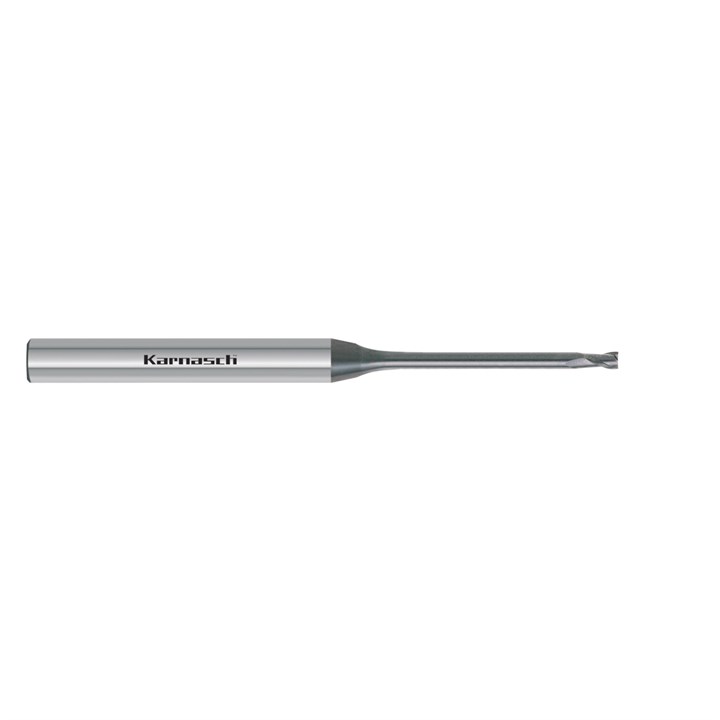

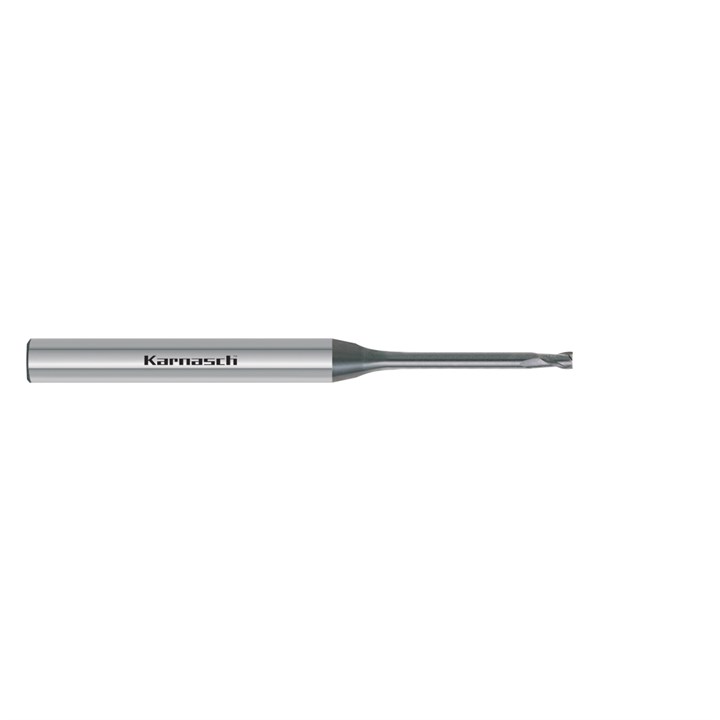

Diamond Coated Solid Carbide End Mill, Corner Radius, <20xD
306545_P
More details on catalogue page number 124 -
Click to view
£0.00
From £83.87 Excl VAT
(£99.81 incl VAT)
Live prices currently unavailable, list price shown.
Diamond coated solid carbide end mill with corner radius < 20xd depth cutting.
Product Description
Diamond coated solid carbide end mill with corner radius < 20xD depth cutting.
DCC-0318
Diamond coating for maximum tool life when drilling and milling.
- Coating technology: CVD Chemical Vapour Deposition Micro hardness: 10000 HV0.05
- Coating material: Diamond
- Coating thickness: Diameter-related Max. operating temperature: 700 degrees C
This optimized droplet-free diamond coating increases the tool life of GRP/CRP and graphite machining significantly. As a result of the true contour diamond coating and the 100% control of all drills and cutters, a unique tool life and performance is achieved even with the smallest dimensions.
Product Downloads
There are no download types with downloads for this product.
Related Products
No related products
Alternative Products
296523_P
Cvd chemical vapor desposition end mill with corner radius, hsc high-speed-cutting.
From £360.10 Excl VAT
306271_P
Diamond coated solid carbide end mill with corner radius.
From £113.72 Excl VAT
306544_P
Solid carbide end mill with corner radius < 25 x d diameter cutting depth.
From £46.90 Excl VAT
Special Offer
306546_P
Diamond coated solid carbide end mill with corner radius < 20xd depth cutting.
From £54.59 Excl VAT
306572_P
Graphite-roughing end mill for large working depths with a straight front.
From £114.25 Excl VAT
306573_P
Graphite-roughing end mill for large working depths with corner radius.
From £114.25 Excl VAT
Product Code
D1 (mm)
D2 (mm)
D3 (mm)
L3 (mm)

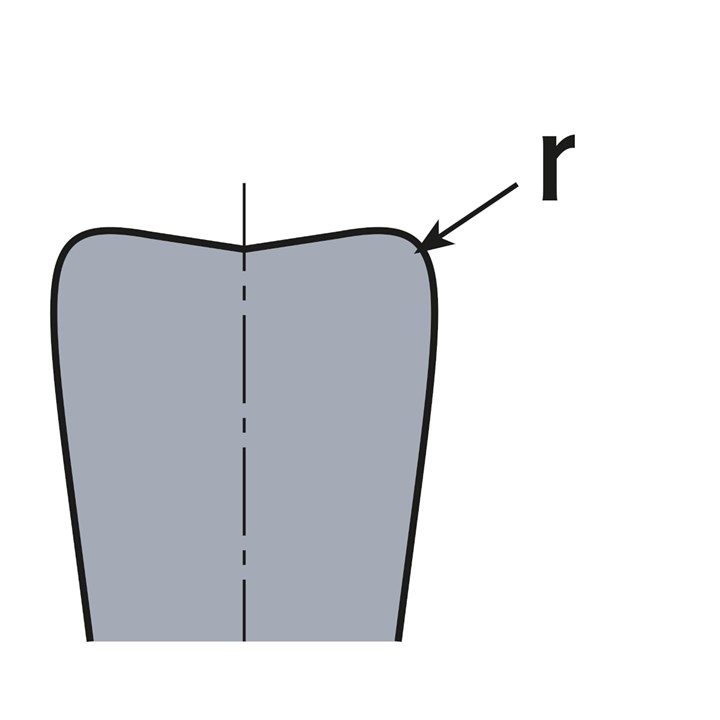

Radius
L2 (mm)
L1 (mm)
Coating
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
R2 - Neck to Shank
Version
Z (Cutting Edges)
Product Code
3065450010001002
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,8
L3 (mm)
0,2
Radius
0,01
L2 (mm)
0,15
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,36
Incline Angle 1.0
0,38
Incline Angle 2.0
0,42
Incline Angle 3.0
0,46
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450010001004
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,8
L3 (mm)
0,4
Radius
0,01
L2 (mm)
0,15
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,57
Incline Angle 1.0
0,6
Incline Angle 2.0
0,65
Incline Angle 3.0
0,7
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450015001003
IN STOCK
D1 (mm)
0,15
D2 (mm)
4
D3 (mm)
0,13
L3 (mm)
0,3
Radius
0,01
L2 (mm)
0,20
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,47
Incline Angle 1.0
0,49
Incline Angle 2.0
0,54
Incline Angle 3.0
0,58
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450015001006
IN STOCK
D1 (mm)
0,15
D2 (mm)
4
D3 (mm)
0,13
L3 (mm)
0,6
Radius
0,01
L2 (mm)
0,20
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,78
Incline Angle 1.0
0,82
Incline Angle 2.0
0,88
Incline Angle 3.0
0,94
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450020002004
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,18
L3 (mm)
0,4
Radius
0,02
L2 (mm)
0,30
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,57
Incline Angle 1.0
0,6
Incline Angle 2.0
0,65
Incline Angle 3.0
0,7
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450020002006
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,18
L3 (mm)
0,6
Radius
0,02
L2 (mm)
0,30
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,78
Incline Angle 1.0
0,82
Incline Angle 2.0
0,88
Incline Angle 3.0
0,94
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450020002008
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,18
L3 (mm)
0,8
Radius
0,02
L2 (mm)
0,30
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,99
Incline Angle 1.0
1,03
Incline Angle 2.0
1,11
Incline Angle 3.0
1,18
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450020002010
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,18
L3 (mm)
1
Radius
0,02
L2 (mm)
0,30
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
1,2
Incline Angle 1.0
1,25
Incline Angle 2.0
1,33
Incline Angle 3.0
1,42
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450020002015
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,18
L3 (mm)
1,5
Radius
0,02
L2 (mm)
0,30
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
1,72
Incline Angle 1.0
1,78
Incline Angle 2.0
1,9
Incline Angle 3.0
2,03
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030002005
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
0,5
Radius
0,02
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,65
Incline Angle 1.0
0,72
Incline Angle 2.0
0,84
Incline Angle 3.0
0,94
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030002010
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1
Radius
0,02
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,51
Incline Angle 3.0
1,62
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030002015
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1,5
Radius
0,02
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
1,85
Incline Angle 1.0
1,94
Incline Angle 2.0
2,08
Incline Angle 3.0
2,23
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030002020
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
2
Radius
0,02
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030002030
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
3
Radius
0,02
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030002045
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
4,5
Radius
0,02
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,98
Incline Angle 1.0
5,14
Incline Angle 2.0
5,47
Incline Angle 3.0
5,85
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030002060
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
6
Radius
0,02
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,53
Incline Angle 1.0
6,73
Incline Angle 2.0
7,16
Incline Angle 3.0
7,66
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030005005
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
0,5
Radius
0,05
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
0,64
Incline Angle 1.0
0,72
Incline Angle 2.0
0,83
Incline Angle 3.0
0,93
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030005010
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1
Radius
0,05
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,51
Incline Angle 3.0
1,62
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030005015
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1,5
Radius
0,05
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
1,85
Incline Angle 1.0
1,94
Incline Angle 2.0
2,08
Incline Angle 3.0
2,22
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030005020
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
2
Radius
0,05
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,37
Incline Angle 1.0
2,48
Incline Angle 2.0
2,64
Incline Angle 3.0
2,82
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030005030
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
3
Radius
0,05
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,77
Incline Angle 3.0
4,03
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030005045
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
4,5
Radius
0,05
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,98
Incline Angle 1.0
5,14
Incline Angle 2.0
5,47
Incline Angle 3.0
4,03
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450030005060
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
6
Radius
0,05
L2 (mm)
0,50
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,53
Incline Angle 1.0
6,73
Incline Angle 2.0
7,16
Incline Angle 3.0
7,65
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040002020
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
2
Radius
0,02
L2 (mm)
0,60
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,4
Incline Angle 1.0
2,5
Incline Angle 2.0
2,67
Incline Angle 3.0
2,85
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040002040
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
4
Radius
0,02
L2 (mm)
0,60
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,48
Incline Angle 1.0
4,63
Incline Angle 2.0
4,93
Incline Angle 3.0
5,26
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040002060
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
6
Radius
0,02
L2 (mm)
0,60
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,55
Incline Angle 1.0
6,75
Incline Angle 2.0
7,18
Incline Angle 3.0
7,68
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040002080
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
8
Radius
0,02
L2 (mm)
0,60
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,61
Incline Angle 1.0
8,87
Incline Angle 2.0
9,44
Incline Angle 3.0
10,09
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040005020
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
2
Radius
0,05
L2 (mm)
0,60
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,4
Incline Angle 1.0
2,5
Incline Angle 2.0
2,66
Incline Angle 3.0
2,84
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040005040
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
4
Radius
0,05
L2 (mm)
0,60
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,48
Incline Angle 1.0
4,63
Incline Angle 2.0
4,92
Incline Angle 3.0
5,26
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040005060
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
6
Radius
0,05
L2 (mm)
0,60
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,55
Incline Angle 1.0
6,75
Incline Angle 2.0
7,18
Incline Angle 3.0
7,67
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450040005080
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,36
L3 (mm)
8
Radius
0,05
L2 (mm)
0,60
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,61
Incline Angle 1.0
8,87
Incline Angle 2.0
9,44
Incline Angle 3.0
10,09
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450050005020
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,45
L3 (mm)
2
Radius
0,05
L2 (mm)
0,70
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,43
Incline Angle 1.0
2,52
Incline Angle 2.0
2,68
Incline Angle 3.0
2,86
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450050005040
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,45
L3 (mm)
4
Radius
0,05
L2 (mm)
0,70
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,5
Incline Angle 1.0
4,64
Incline Angle 2.0
4,94
Incline Angle 3.0
5,28
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450050005060
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,45
L3 (mm)
6
Radius
0,05
L2 (mm)
0,70
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,57
Incline Angle 1.0
6,76
Incline Angle 2.0
7,2
Incline Angle 3.0
7,69
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450050005080
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,45
L3 (mm)
8
Radius
0,05
L2 (mm)
0,70
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,62
Incline Angle 1.0
8,89
Incline Angle 2.0
9,46
Incline Angle 3.0
10,1
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450050005100
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,45
L3 (mm)
10
Radius
0,05
L2 (mm)
0,70
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
10,68
Incline Angle 1.0
11,01
Incline Angle 2.0
11,71
Incline Angle 3.0
12,52
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060005020
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
2
Radius
0,05
L2 (mm)
1
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,61
Incline Angle 1.0
2,76
Incline Angle 2.0
3,01
Incline Angle 3.0
3,22
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060005030
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
3
Radius
0,05
L2 (mm)
1
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
3,67
Incline Angle 1.0
3,85
Incline Angle 2.0
4,15
Incline Angle 3.0
4,43
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060005060
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
6
Radius
0,05
L2 (mm)
1
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,82
Incline Angle 1.0
7,08
Incline Angle 2.0
7,54
Incline Angle 3.0
8,05
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060005090
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
9
Radius
0,05
L2 (mm)
1
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
9,94
Incline Angle 1.0
10,26
Incline Angle 2.0
10,92
Incline Angle 3.0
11,67
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060005120
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
12
Radius
0,05
L2 (mm)
1
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,04
Incline Angle 1.0
13,44
Incline Angle 2.0
14,31
Incline Angle 3.0
15,29
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060006020
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
2
Radius
0,06
L2 (mm)
1
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,61
Incline Angle 1.0
2,76
Incline Angle 2.0
3,01
Incline Angle 3.0
3,22
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060006030
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
3
Radius
0,06
L2 (mm)
1
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
3,67
Incline Angle 1.0
3,85
Incline Angle 2.0
4,15
Incline Angle 3.0
4,43
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060006060
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
6
Radius
0,06
L2 (mm)
1
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,82
Incline Angle 1.0
7,08
Incline Angle 2.0
7,54
Incline Angle 3.0
8,05
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060006090
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
9
Radius
0,06
L2 (mm)
1
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
9,94
Incline Angle 1.0
10,26
Incline Angle 2.0
10,92
Incline Angle 3.0
11,67
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450060006120
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,55
L3 (mm)
12
Radius
0,06
L2 (mm)
1
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,04
Incline Angle 1.0
13,44
Incline Angle 2.0
14,31
Incline Angle 3.0
15,29
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080005020
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
2
Radius
0,05
L2 (mm)
1,2
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,61
Incline Angle 1.0
2,76
Incline Angle 2.0
3,01
Incline Angle 3.0
3,22
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080005040
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
4
Radius
0,05
L2 (mm)
1,2
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,72
Incline Angle 1.0
4,93
Incline Angle 2.0
5,28
Incline Angle 3.0
5,64
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080005060
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
6
Radius
0,05
L2 (mm)
1,2
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,82
Incline Angle 1.0
7,08
Incline Angle 2.0
7,54
Incline Angle 3.0
8,05
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080005080
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
8
Radius
0,05
L2 (mm)
1,2
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,9
Incline Angle 1.0
9,2
Incline Angle 2.0
9,79
Incline Angle 3.0
10,47
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080005120
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
12
Radius
0,05
L2 (mm)
1,2
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,04
Incline Angle 1.0
13,44
Incline Angle 2.0
14,31
Incline Angle 3.0
15,29
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080005160
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
16
Radius
0,05
L2 (mm)
1,2
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
17,17
Incline Angle 1.0
17,69
Incline Angle 2.0
18,82
Incline Angle 3.0
20,12
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080008020
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
2
Radius
0,08
L2 (mm)
1,2
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,61
Incline Angle 1.0
2,75
Incline Angle 2.0
3
Incline Angle 3.0
3,22
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080008040
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
4
Radius
0,08
L2 (mm)
1,2
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,72
Incline Angle 1.0
4,93
Incline Angle 2.0
5,27
Incline Angle 3.0
5,63
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080008060
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
6
Radius
0,08
L2 (mm)
1,2
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,81
Incline Angle 1.0
7,08
Incline Angle 2.0
7,53
Incline Angle 3.0
8,05
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080008080
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
8
Radius
0,08
L2 (mm)
1,2
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,9
Incline Angle 1.0
9,2
Incline Angle 2.0
9,79
Incline Angle 3.0
10,46
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080008120
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
12
Radius
0,08
L2 (mm)
1,2
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,04
Incline Angle 1.0
13,44
Incline Angle 2.0
14,3
Incline Angle 3.0
15,29
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450080008160
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,75
L3 (mm)
16
Radius
0,08
L2 (mm)
1,2
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
17,17
Incline Angle 1.0
17,69
Incline Angle 2.0
18,82
Incline Angle 3.0
20,11
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100005020
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
2
Radius
0,05
L2 (mm)
1,6
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,61
Incline Angle 1.0
2,76
Incline Angle 2.0
3,01
Incline Angle 3.0
3,22
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100005050
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
5
Radius
0,05
L2 (mm)
1,6
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
5,77
Incline Angle 1.0
6,01
Incline Angle 2.0
6,41
Incline Angle 3.0
6,85
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100005080
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
8
Radius
0,05
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,9
Incline Angle 1.0
9,2
Incline Angle 2.0
9,79
Incline Angle 3.0
10,47
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100005100
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
10
Radius
0,05
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
10,97
Incline Angle 1.0
11,32
Incline Angle 2.0
12,05
Incline Angle 3.0
12,88
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100005150
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
15
Radius
0,05
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
16,41
Incline Angle 1.0
16,94
Incline Angle 2.0
18,03
Incline Angle 3.0
19,27
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100005200
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
20
Radius
0,05
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
21,58
Incline Angle 1.0
22,25
Incline Angle 2.0
23,68
Incline Angle 3.0
25,31
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100010020
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
2
Radius
0,1
L2 (mm)
1,6
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,61
Incline Angle 1.0
2,75
Incline Angle 2.0
3
Incline Angle 3.0
3,21
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100010050
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
5
Radius
0,1
L2 (mm)
1,6
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
5,77
Incline Angle 1.0
6
Incline Angle 2.0
6,4
Incline Angle 3.0
6,83
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100010080
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
8
Radius
0,1
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,9
Incline Angle 1.0
9,2
Incline Angle 2.0
9,79
Incline Angle 3.0
10,46
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100010100
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
10
Radius
0,1
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
10,97
Incline Angle 1.0
11,32
Incline Angle 2.0
12,04
Incline Angle 3.0
12,87
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100010150
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
15
Radius
0,1
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
16,41
Incline Angle 1.0
16,94
Incline Angle 2.0
18,03
Incline Angle 3.0
19,26
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100010200
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
20
Radius
0,1
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
21,58
Incline Angle 1.0
22,24
Incline Angle 2.0
23,67
Incline Angle 3.0
25,3
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100020020
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
2
Radius
0,2
L2 (mm)
1,6
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
2,61
Incline Angle 1.0
2,74
Incline Angle 2.0
2,98
Incline Angle 3.0
3,19
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100020050
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
5
Radius
0,2
L2 (mm)
1,6
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
5,76
Incline Angle 1.0
6
Incline Angle 2.0
6,39
Incline Angle 3.0
6,81
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100020080
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
8
Radius
0,2
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,89
Incline Angle 1.0
9,19
Incline Angle 2.0
9,77
Incline Angle 3.0
10,44
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100020100
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
10
Radius
0,2
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
10,97
Incline Angle 1.0
11,31
Incline Angle 2.0
12,03
Incline Angle 3.0
12,85
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100020150
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
15
Radius
0,2
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
16,4
Incline Angle 1.0
16,93
Incline Angle 2.0
18,01
Incline Angle 3.0
19,24
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450100020200
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,95
L3 (mm)
20
Radius
0,2
L2 (mm)
1,6
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
21,58
Incline Angle 1.0
22,24
Incline Angle 2.0
23,66
Incline Angle 3.0
25,28
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150005050
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
5
Radius
0,05
L2 (mm)
2,4
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
5,8
Incline Angle 1.0
6,03
Incline Angle 2.0
6,42
Incline Angle 3.0
6,86
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150005100
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
10
Radius
0,05
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
10,99
Incline Angle 1.0
11,34
Incline Angle 2.0
12,07
Incline Angle 3.0
12,9
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150005150
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
15
Radius
0,05
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
16,16
Incline Angle 1.0
16,64
Incline Angle 2.0
17,71
Incline Angle 3.0
18,93
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150005200
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
20
Radius
0,05
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
21,6
Incline Angle 1.0
22,26
Incline Angle 2.0
23,7
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150015050
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
5
Radius
0,15
L2 (mm)
2,4
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
5,79
Incline Angle 1.0
6,02
Incline Angle 2.0
6,41
Incline Angle 3.0
6,84
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150015100
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
10
Radius
0,15
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
10,99
Incline Angle 1.0
11,34
Incline Angle 2.0
12,06
Incline Angle 3.0
12,88
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150015150
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
15
Radius
0,15
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
16,15
Incline Angle 1.0
16,64
Incline Angle 2.0
17,7
Incline Angle 3.0
18,91
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150015200
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
20
Radius
0,15
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
21,6
Incline Angle 1.0
22,26
Incline Angle 2.0
23,68
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150020050
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
5
Radius
0,2
L2 (mm)
2,4
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
5,79
Incline Angle 1.0
6,02
Incline Angle 2.0
6,41
Incline Angle 3.0
6,83
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150020100
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
10
Radius
0,2
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
10,99
Incline Angle 1.0
11,33
Incline Angle 2.0
12,05
Incline Angle 3.0
12,87
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150020150
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
15
Radius
0,2
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
16,15
Incline Angle 1.0
16,63
Incline Angle 2.0
17,7
Incline Angle 3.0
18,9
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450150020200
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
20
Radius
0,2
L2 (mm)
2,4
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
21,6
Incline Angle 1.0
22,25
Incline Angle 2.0
23,68
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200005040
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
4
Radius
0,05
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,8
Incline Angle 1.0
5
Incline Angle 2.0
5,33
Incline Angle 3.0
5,7
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200005060
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
6
Radius
0,05
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,89
Incline Angle 1.0
7,13
Incline Angle 2.0
7,59
Incline Angle 3.0
8,11
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200005080
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
8
Radius
0,05
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,96
Incline Angle 1.0
9,25
Incline Angle 2.0
9,85
Incline Angle 3.0
10,52
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200005120
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
12
Radius
0,05
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,1
Incline Angle 1.0
13,5
Incline Angle 2.0
14,36
Incline Angle 3.0
15,35
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200005180
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
18
Radius
0,05
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
19,28
Incline Angle 1.0
19,86
Incline Angle 2.0
21,14
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200005240
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
24
Radius
0,05
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
25,76
Incline Angle 1.0
26,54
Incline Angle 2.0
28,25
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200005300
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
30
Radius
0,05
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
31,94
Incline Angle 1.0
32,9
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200020040
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
4
Radius
0,2
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,8
Incline Angle 1.0
4,99
Incline Angle 2.0
5,31
Incline Angle 3.0
5,67
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200020060
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
6
Radius
0,2
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,88
Incline Angle 1.0
7,12
Incline Angle 2.0
7,57
Incline Angle 3.0
8,08
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200020080
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
8
Radius
0,2
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,96
Incline Angle 1.0
9,25
Incline Angle 2.0
9,83
Incline Angle 3.0
10,49
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200020120
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
12
Radius
0,2
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,09
Incline Angle 1.0
13,49
Incline Angle 2.0
14,35
Incline Angle 3.0
15,32
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200020180
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
18
Radius
0,2
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
19,27
Incline Angle 1.0
19,85
Incline Angle 2.0
21,12
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200020240
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
24
Radius
0,2
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
25,76
Incline Angle 1.0
26,53
Incline Angle 2.0
28,23
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200020300
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
30
Radius
0,2
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
31,93
Incline Angle 1.0
32,89
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200030040
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
4
Radius
0,3
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,79
Incline Angle 1.0
4,98
Incline Angle 2.0
5,3
Incline Angle 3.0
5,65
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200030060
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
6
Radius
0,3
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,88
Incline Angle 1.0
7,12
Incline Angle 2.0
7,56
Incline Angle 3.0
8,06
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200030080
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
8
Radius
0,3
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,95
Incline Angle 1.0
9,24
Incline Angle 2.0
9,82
Incline Angle 3.0
10,47
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200030120
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
12
Radius
0,3
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,09
Incline Angle 1.0
13,48
Incline Angle 2.0
14,33
Incline Angle 3.0
15,3
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200030180
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
18
Radius
0,3
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
19,27
Incline Angle 1.0
19,85
Incline Angle 2.0
21,11
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200030240
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
24
Radius
0,3
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
25,75
Incline Angle 1.0
26,53
Incline Angle 2.0
28,22
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200030300
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
30
Radius
0,3
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
31,93
Incline Angle 1.0
32,89
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200050040
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
4
Radius
0,5
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
4,78
Incline Angle 1.0
4,96
Incline Angle 2.0
5,28
Incline Angle 3.0
5,61
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200050060
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
6
Radius
0,5
L2 (mm)
3
L1 (mm)
40
Coating
Diamond/DCC 0318
Incline Angle 0.5
6,87
Incline Angle 1.0
7,1
Incline Angle 2.0
7,53
Incline Angle 3.0
8,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200050080
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
8
Radius
0,5
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
8,95
Incline Angle 1.0
9,23
Incline Angle 2.0
9,79
Incline Angle 3.0
10,43
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200050120
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
12
Radius
0,5
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
13,09
Incline Angle 1.0
13,47
Incline Angle 2.0
14,31
Incline Angle 3.0
15,26
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200050180
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
18
Radius
0,5
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
19,26
Incline Angle 1.0
19,83
Incline Angle 2.0
21,08
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200050240
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
24
Radius
0,5
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
25,75
Incline Angle 1.0
26,51
Incline Angle 2.0
28,19
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3065450200050300
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
30
Radius
0,5
L2 (mm)
3
L1 (mm)
60
Coating
Diamond/DCC 0318
Incline Angle 0.5
31,93
Incline Angle 1.0
23,88
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
6
Version
Slot Cutters
Z (Cutting Edges)
2
