Compatible Materials
Composites
Composites
Zirconoxide
Zirconoxide
Graphite
Graphite
Features
35 Degree Helix Angle (Pointed)
35 Degree Helix Angle (Pointed)
90 Degree Cutting Edge
90 Degree Cutting Edge
Air Cooling
Air Cooling
Composites
Composites
DCC 0318 Coating
DCC 0318 Coating
DIN 6535 Form HA
DIN 6535 Form HA
Extra Short Cutting Length
Extra Short Cutting Length
Karnasch Norm
Karnasch Norm
MF Cutting Edge
MF Cutting Edge
Micro Grain
Micro Grain
Mill Direction
Mill Direction
No Interior Cooling
No Interior Cooling
Product Video
The diamond coated solid carbide drill 290120 drilling without delamination on carbon, glass fibre, aluminium and titanium stacks.

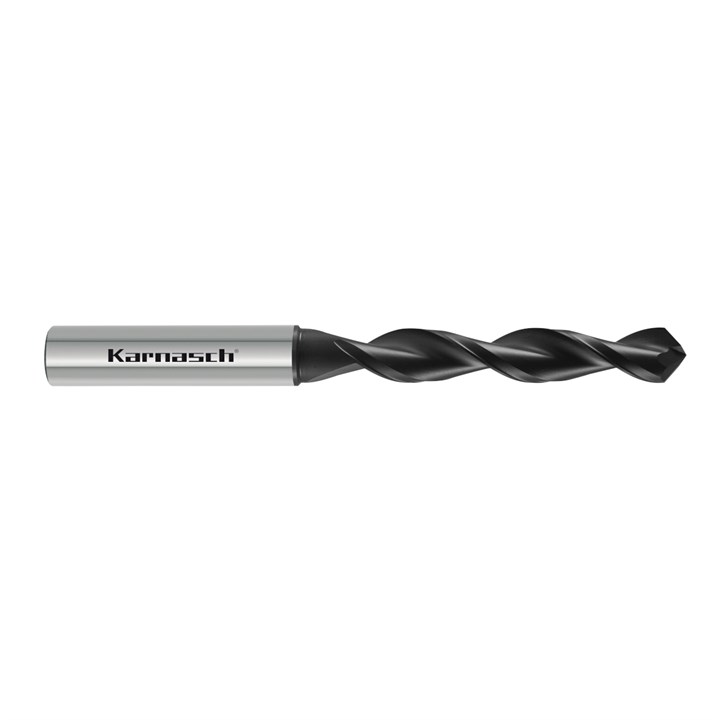

Diamond Coated Solid Carbide drill for CFK/GFK, Multi-directional, 90 Degree Tip Angle
Diamond Coated Solid Carbide drill for CFK/GFK, Multi-directional, 90 Degree Tip Angle
290120_P
18 IN STOCK
-
+
Diamond Coated Solid Carbide drill for CFK/GFK, Multi-directional, 90 Degree Tip Angle
Diamond Coated Solid Carbide drill for CFK/GFK, Multi-directional, 90 Degree Tip Angle
290120_P

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter your name

Please enter your company name

Please select a Country

Please enter a Contact NumberPlease enter a valid Contact Number, the maximum length Is 30 charactersPlease enter a valid Contact Number consisting only Of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Quantity is requiredQuantity too largeQuantity must be an integer numberQuantity must be greater than 0

Date is requiredValid date format is: dd-mm - yyyyDate must not be in the past

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Diamond Coated Solid Carbide drill for CFK/GFK, Multi-directional, 90 Degree Tip Angle

290120_P
More details on catalogue page number 114 -  Click to view
Diamond Coated Solid Carbide drill for CFK/GFK, Multi-directional, 90 Degree Tip Angle
Diamond Coated Solid Carbide drill for CFK/GFK, Multi-directional, 90 Degree Tip Angle
From €103.70 Excl VAT
Loading Variations
-
+
Diamond-coated solid carbide drill for cfk/gfk material/multidirectional, with 90 degrees tip angle, prevents delamination.
Read full description
Product Description

Diamond-coated solid carbide drill for CFK/GFK material/multidirectional, with 90 Degrees tip angle, prevents delamination.

DCC-0318

Diamond coating for maximum tool life when drilling and milling.

  • Coating technology: CVD Chemical Vapour Deposition Micro hardness: 10000 HV0.05
  • Coating material: Diamond
  • Coating thickness: Diameter-related Max. operating temperature: 700 degrees C

This optimized droplet-free diamond coating increases the tool life of GRP/CRP and graphite machining significantly. As a result of the true contour diamond coating and the 100 control of all drills and cutters, a unique tool life and performance is achieved even with the smallest dimensions.
