HSS-XE tube and sheet drill, 4-20mm, CBN ground, 2 cutting edges
HSS-XE tube and sheet drill, 4-20mm, CBN ground, 2 cutting edges
201472U
74 IN STOCK
Prices displayed are ex VAT
0+
€21.55
Total Price €21.55

-
+

Sale Article

HSS-XE tube and sheet drill, 4-20mm, CBN ground, 2 cutting edges
HSS-XE tube and sheet drill, 4-20mm, CBN ground, 2 cutting edges
201472U

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter your name

Please enter your company name

Please select a Country

Please enter a Contact NumberPlease enter a valid Contact Number, the maximum length Is 30 charactersPlease enter a valid Contact Number consisting only Of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Quantity is requiredQuantity too largeQuantity must be an integer numberQuantity must be greater than 0

Date is requiredValid date format is: dd-mm - yyyyDate must not be in the past

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

HSS-XE tube and sheet drill, 4-20mm, CBN ground, 2 cutting edges

201472U | 74 IN STOCK

Sale Article

HSS-XE tube and sheet drill, 4-20mm, CBN ground, 2 cutting edges HSS-XE tube and sheet drill, 4-20mm, CBN ground, 2 cutting edges
€21.55 Excl VAT
74 IN STOCK
-
+
The karnasch professional tube and sheet drill made of hss-xe steel and spiral fluted with split point karnasch tube and sheet drills are a low price alternative to Tube and sheet drills are designed to drill slightly conical holes in sheet metal of an thickness up to 4 mm (5/32").

    Product Description

    The Karnasch Professional tube and sheet drill made of HSS-XE steel and spiral fluted with split point

    Karnasch TUBE AND SHEET DRILLS are a low price alternative to STEP DRILLS. Tube and sheet drills are designed to drill slightly conical holes in sheet metal of an thickness up to 4 mm (5/32"). The holes are deburred on both sides by the paring cut.

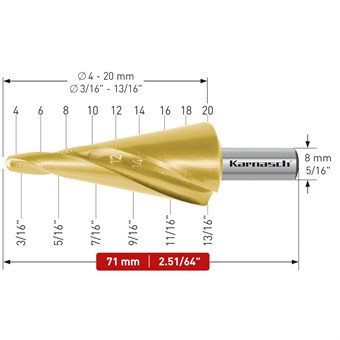

    This versatile tool combines several drills with diameters of 4 - 20mm (3/16" - 13/16"). The radius transition simultaneously bezels or deburrs the bore holes.

    The drills are axial-radially relief grounded and can be resharpened at the tooth face.

    HSS-XE steel

    Made of high-alloyed special steel XE“ for considerably longer service life than HSS-Steel.

    The CBN ground and spiral flutes guarantee smooth running and high cutting performance. The chip flow is optimized and removed easily as with a twist drill.

    3-Flat shank for:

    • Excellent torque transmission
    • No slippage in the drill chuck
    • This results to superior cutting output

    All step drills and sheets drills are also available in the patented TiN-GOLD coating or BLUE-DUR-coating. Coatings significantly increase the service life. Strongly recommended for difficult materials such as stainless steels and if drilling without coolants.

    All step drills and sheet drills comes lasered with diameters in the spiral.

    All step drills and sheet drills are made of high-alloy steel HSS-XE for a hardness up to 68 HRC. This results in high wear resistance and service life.

    Step drills and sheet drills are also available spiral-fluted for:

    • Smooth cutting behavior
    • No sticking in the material
    • Low cutting forces
    • Less burrs on the work piece
    • Longer service life
