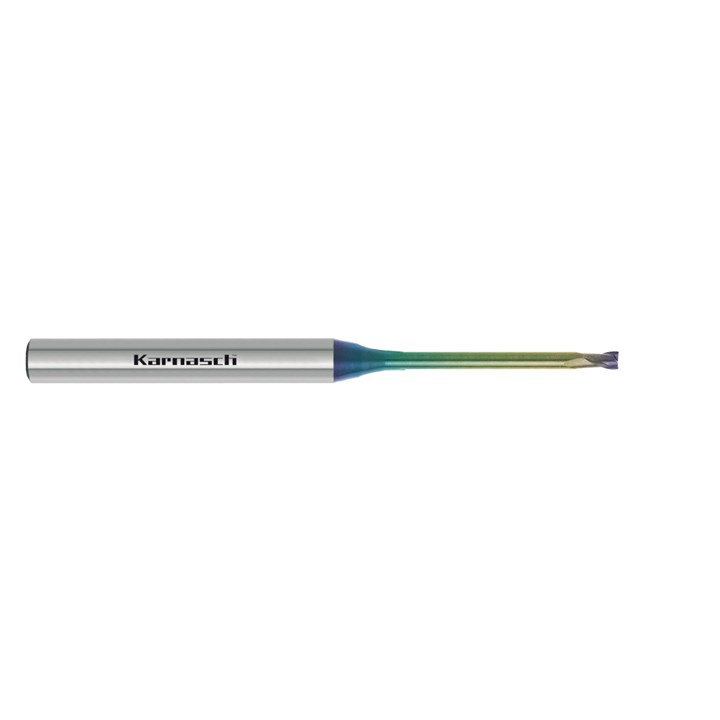

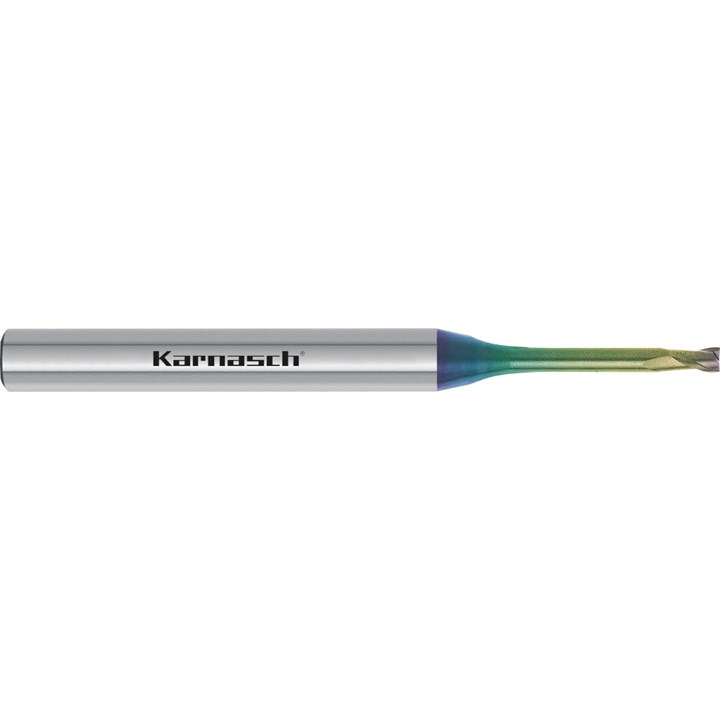

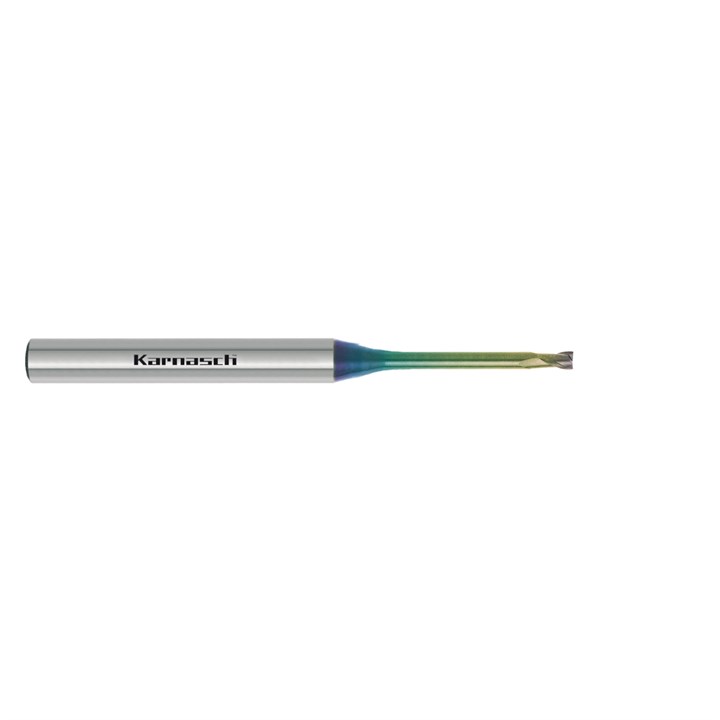

Solid Carbide Minature End Mill, Corner Radius, <15xD, 4mm Shank
306203_P
More details on catalogue page number 32 -
Click to view
€0.00
From €48.40 Excl VAT
Live prices currently unavailable, list price shown.
Solid carbide minature end mill with corner radius, < 15xd diameter cutting depth, shank 4mm.
Product Description
Solid carbide minature end mill with corner radius, < 15xD diameter cutting depth, shank 4mm.
NHC-7000 Coating
Best machining results in all non-ferrous metals, plastics and CFRP/GFRP.
- Coating technology: PACVD Plasma Assisted Chemical Vapour Deposition
- Micro hardness: 7000 HV0.05
- Coating material: DLC
- Coating thickness: <0.7µ
- Max. operating temperature: 900 degrees C
This outstanding NHC-7000 coating simplifies the processing of non-ferrous metals, plastics and GRP/CRP. The very thin, very smooth and extremely hard coating enables exceptional tool life and surfaces, even with aluminum >6% Si.
Materials Information:
- Alloys
- Brass
- Bronze
- Composites
- Copper
- Nickel
- Titanium
- Aluminum below 6%
- Aluminum below 12%
- Plastics
- Ampco
- Nickel below 500 N/MM2
- Makrolon
- UHMWPE - Ultra-high-molecular-weight polyethylene
- PMMA - Poly (methyl methacrylate)
- GFK/CFK - Glass/Fiber reinforced plastics
Product Downloads
There are no download types with downloads for this product.
Related Products
No related products
Alternative Products
306256_P
Solid carbide minature end mill with corner radius, <15xd diameter cutting depth, shank 4mm.
From €51.50 Excl VAT
306261_P
Solid carbide minature end mill with corner radius, 2-30 x diameter cutting depth, shank 6mm.
From €22.51 Excl VAT
308011_P
Solid carbide minature end mill, corner radius, <20xd depth, <55 hrc, 2 cutting edges.
From €23.90 Excl VAT
New
306258_P
Solid carbide miniature end mill with corner radius and cooling holes in shank, shank 4 mm.
From €72.45 Excl VAT
Product Code
D1 (mm)
D2 (mm)
D3 (mm)
L3 (mm)

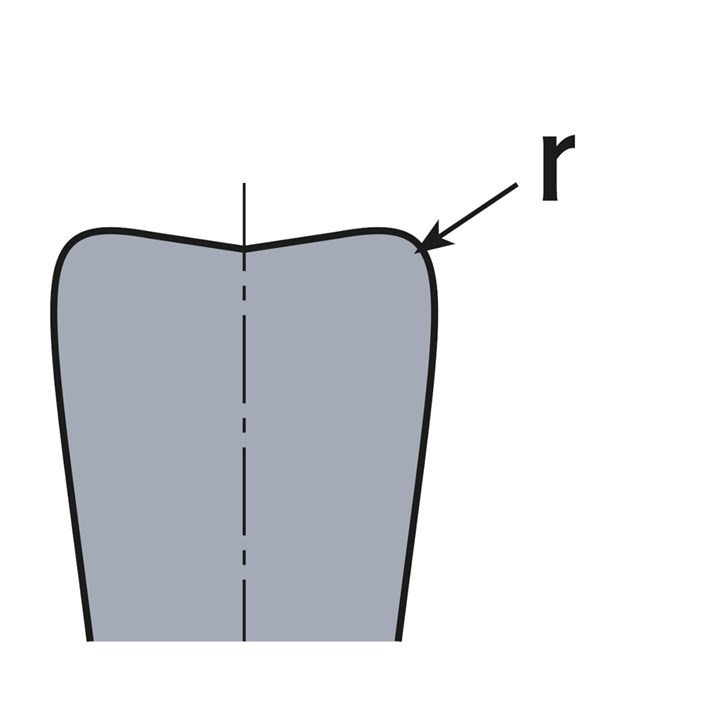

Radius
L2 (mm)
L1 (mm)
Coating
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
R2 - Neck to Shank
Version
Z (Cutting Edges)
Product Code
3062030010002002
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,08
L3 (mm)
0,2
Radius
0,02
L2 (mm)
0,1
L1 (mm)
45
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,36
Incline Angle 1.0
0,38
Incline Angle 2.0
0,42
Incline Angle 3.0
0,46
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030010002003
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,08
L3 (mm)
0,3
Radius
0,02
L2 (mm)
0,1
L1 (mm)
45
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,47
Incline Angle 1.0
0,49
Incline Angle 2.0
0,54
Incline Angle 3.0
0,58
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030010002004
IN STOCK
D1 (mm)
0,1
D2 (mm)
4
D3 (mm)
0,08
L3 (mm)
0,4
Radius
0,02
L2 (mm)
0,1
L1 (mm)
45
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,57
Incline Angle 1.0
0,6
Incline Angle 2.0
0,65
Incline Angle 3.0
0,7
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030020005005
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
0,5
Radius
0,05
L2 (mm)
0,15
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
0,7
Incline Angle 1.0
0,73
Incline Angle 2.0
0,79
Incline Angle 3.0
0,84
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030020005010
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
1
Radius
0,05
L2 (mm)
0,15
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,23
Incline Angle 1.0
1,27
Incline Angle 2.0
1,35
Incline Angle 3.0
1,45
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030020005015
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
1,5
Radius
0,05
L2 (mm)
0,15
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,74
Incline Angle 1.0
1,8
Incline Angle 2.0
1,92
Incline Angle 3.0
2,05
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030020005020
IN STOCK
D1 (mm)
0,2
D2 (mm)
4
D3 (mm)
0,17
L3 (mm)
2
Radius
0,05
L2 (mm)
0,15
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,26
Incline Angle 1.0
2,33
Incline Angle 2.0
2,48
Incline Angle 3.0
2,65
Metric / Imp.
Metric
R2 - Neck to Shank
1
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030030005010
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1
Radius
0,05
L2 (mm)
0,25
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,52
Incline Angle 3.0
2,11
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030030005015
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
1,5
Radius
0,05
L2 (mm)
0,25
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,85
Incline Angle 1.0
1,94
Incline Angle 2.0
2,09
Incline Angle 3.0
2,23
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030030005020
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
2
Radius
0,05
L2 (mm)
0,25
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030030005025
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
2,5
Radius
0,05
L2 (mm)
0,25
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,9
Incline Angle 1.0
3,02
Incline Angle 2.0
3,22
Incline Angle 3.0
3,44
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030030005030
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
3
Radius
0,05
L2 (mm)
0,25
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030030005050
IN STOCK
D1 (mm)
0,3
D2 (mm)
4
D3 (mm)
0,27
L3 (mm)
5
Radius
0,05
L2 (mm)
0,25
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,48
Incline Angle 1.0
5,65
Incline Angle 2.0
6,02
Incline Angle 3.0
6,43
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030040005020
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
2
Radius
0,05
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030040005040
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
4
Radius
0,05
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,46
Incline Angle 1.0
4,61
Incline Angle 2.0
4,91
Incline Angle 3.0
5,25
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030040010010
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
1
Radius
0,1
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,52
Incline Angle 3.0
1,63
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030040010015
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
1,5
Radius
0,1
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,85
Incline Angle 1.0
1,94
Incline Angle 2.0
2,09
Incline Angle 3.0
2,23
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030040010020
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
2
Radius
0,1
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030040010030
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
3
Radius
0,1
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030040010040
IN STOCK
D1 (mm)
0,4
D2 (mm)
4
D3 (mm)
0,37
L3 (mm)
4
Radius
0,1
L2 (mm)
0,3
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,46
Incline Angle 1.0
4,61
Incline Angle 2.0
4,91
Incline Angle 3.0
5,25
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050005020
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
2
Radius
0,05
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050005030
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
3
Radius
0,05
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050005040
Out Of Stock
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
4
Radius
0,05
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,46
Incline Angle 1.0
4,61
Incline Angle 2.0
4,91
Incline Angle 3.0
5,25
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050005050
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
5
Radius
0,05
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,5
Incline Angle 1.0
5,67
Incline Angle 2.0
6,04
Incline Angle 3.0
6,45
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050010010
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
1
Radius
0,1
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
1,32
Incline Angle 1.0
1,39
Incline Angle 2.0
1,52
Incline Angle 3.0
1,63
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050010020
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
2
Radius
0,1
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,38
Incline Angle 1.0
2,48
Incline Angle 2.0
2,65
Incline Angle 3.0
2,83
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050010030
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
3
Radius
0,1
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,42
Incline Angle 1.0
3,55
Incline Angle 2.0
3,78
Incline Angle 3.0
4,04
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050010040
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
4
Radius
0,1
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,46
Incline Angle 1.0
4,61
Incline Angle 2.0
4,91
Incline Angle 3.0
5,25
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030050010060
IN STOCK
D1 (mm)
0,5
D2 (mm)
4
D3 (mm)
0,47
L3 (mm)
6
Radius
0,1
L2 (mm)
0,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,53
Incline Angle 1.0
6,73
Incline Angle 2.0
7,17
Incline Angle 3.0
7,66
Metric / Imp.
Metric
R2 - Neck to Shank
2
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060006020
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
2
Radius
0,06
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,54
Incline Angle 1.0
2,7
Incline Angle 2.0
2,97
Incline Angle 3.0
3,19
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060006040
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
4
Radius
0,06
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,67
Incline Angle 1.0
4,89
Incline Angle 2.0
5,25
Incline Angle 3.0
5,61
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060006060
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
6
Radius
0,06
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,77
Incline Angle 1.0
7,04
Incline Angle 2.0
7,5
Incline Angle 3.0
8,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060006080
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
8
Radius
0,06
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,85
Incline Angle 1.0
9,17
Incline Angle 2.0
9,76
Incline Angle 3.0
10,44
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060010020
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
2
Radius
0,1
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,54
Incline Angle 1.0
2,7
Incline Angle 2.0
2,97
Incline Angle 3.0
3,19
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060010030
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
3
Radius
0,1
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,61
Incline Angle 1.0
3,8
Incline Angle 2.0
4,12
Incline Angle 3.0
4,4
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060010040
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
4
Radius
0,1
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,67
Incline Angle 1.0
4,89
Incline Angle 2.0
5,25
Incline Angle 3.0
5,61
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060010050
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
5
Radius
0,1
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,72
Incline Angle 1.0
5,97
Incline Angle 2.0
6,38
Incline Angle 3.0
6,82
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060010060
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
6
Radius
0,1
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,77
Incline Angle 1.0
7,04
Incline Angle 2.0
7,5
Incline Angle 3.0
8,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030060010080
IN STOCK
D1 (mm)
0,6
D2 (mm)
4
D3 (mm)
0,57
L3 (mm)
8
Radius
0,1
L2 (mm)
0,4
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,85
Incline Angle 1.0
9,17
Incline Angle 2.0
9,76
Incline Angle 3.0
10,44
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080008040
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
4
Radius
0,08
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,67
Incline Angle 1.0
4,89
Incline Angle 2.0
5,25
Incline Angle 3.0
5,61
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080008060
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
6
Radius
0,08
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,77
Incline Angle 1.0
7,04
Incline Angle 2.0
7,5
Incline Angle 3.0
8,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080008080
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
8
Radius
0,08
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,85
Incline Angle 1.0
9,17
Incline Angle 2.0
9,76
Incline Angle 3.0
10,44
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080008100
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
10
Radius
0,08
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,93
Incline Angle 1.0
11,29
Incline Angle 2.0
12,02
Incline Angle 3.0
12,85
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080020020
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
2
Radius
0,2
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,54
Incline Angle 1.0
2,7
Incline Angle 2.0
2,91
Incline Angle 3.0
3,19
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080020040
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
4
Radius
0,2
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,67
Incline Angle 1.0
4,89
Incline Angle 2.0
5,25
Incline Angle 3.0
5,61
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080020050
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
5
Radius
0,2
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,72
Incline Angle 1.0
5,97
Incline Angle 2.0
6,38
Incline Angle 3.0
6,82
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080020060
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
6
Radius
0,2
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,77
Incline Angle 1.0
7,04
Incline Angle 2.0
7,5
Incline Angle 3.0
8,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080020080
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
8
Radius
0,2
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,85
Incline Angle 1.0
9,17
Incline Angle 2.0
9,76
Incline Angle 3.0
10,44
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030080020100
IN STOCK
D1 (mm)
0,8
D2 (mm)
4
D3 (mm)
0,77
L3 (mm)
10
Radius
0,2
L2 (mm)
0,5
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,93
Incline Angle 1.0
11,29
Incline Angle 2.0
12,02
Incline Angle 3.0
12,85
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100010030
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
3
Radius
0,1
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,64
Incline Angle 1.0
3,83
Incline Angle 2.0
4,13
Incline Angle 3.0
4,42
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100010050
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
5
Radius
0,1
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,75
Incline Angle 1.0
5,99
Incline Angle 2.0
6,39
Incline Angle 3.0
6,83
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100010070
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
7
Radius
0,1
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
7,84
Incline Angle 1.0
8,13
Incline Angle 2.0
8,65
Incline Angle 3.0
9,25
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100010100
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
10
Radius
0,1
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,95
Incline Angle 1.0
11,31
Incline Angle 2.0
12,04
Incline Angle 3.0
12,87
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100010120
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
12
Radius
0,1
L2 (mm)
0,8
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,03
Incline Angle 1.0
13,43
Incline Angle 2.0
14,3
Incline Angle 3.0
15,28
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100010150
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
15
Radius
0,1
L2 (mm)
0,8
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,12
Incline Angle 1.0
16,61
Incline Angle 2.0
17,68
Incline Angle 3.0
18,9
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100010200
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
20
Radius
0,1
L2 (mm)
0,8
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,27
Incline Angle 1.0
21,91
Incline Angle 2.0
23,33
Incline Angle 3.0
24,94
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020020
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
2
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
2,58
Incline Angle 1.0
2,73
Incline Angle 2.0
2,99
Incline Angle 3.0
3,21
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020030
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
3
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
3,64
Incline Angle 1.0
3,83
Incline Angle 2.0
4,13
Incline Angle 3.0
4,42
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020040
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
4
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,7
Incline Angle 1.0
4,91
Incline Angle 2.0
5,26
Incline Angle 3.0
5,63
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020050
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
5
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
5,75
Incline Angle 1.0
5,99
Incline Angle 2.0
6,39
Incline Angle 3.0
6,83
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020060
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
6
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,79
Incline Angle 1.0
7,06
Incline Angle 2.0
7,52
Incline Angle 3.0
8,04
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020070
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
7
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
7,84
Incline Angle 1.0
8,13
Incline Angle 2.0
8,65
Incline Angle 3.0
9,25
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020080
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
8
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,88
Incline Angle 1.0
9,19
Incline Angle 2.0
9,78
Incline Angle 3.0
10,46
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020090
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
9
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
9,92
Incline Angle 1.0
10,25
Incline Angle 2.0
10,91
Incline Angle 3.0
11,66
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020100
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
10
Radius
0,2
L2 (mm)
0,8
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,95
Incline Angle 1.0
11,31
Incline Angle 2.0
12,04
Incline Angle 3.0
12,87
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020120
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
12
Radius
0,2
L2 (mm)
0,8
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,03
Incline Angle 1.0
13,43
Incline Angle 2.0
14,3
Incline Angle 3.0
15,28
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030100020150
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0,96
L3 (mm)
15
Radius
0,2
L2 (mm)
0,8
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,12
Incline Angle 1.0
16,61
Incline Angle 2.0
17,68
Incline Angle 3.0
18,9
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030120020060
IN STOCK
D1 (mm)
1,2
D2 (mm)
4
D3 (mm)
1,15
L3 (mm)
6
Radius
0,2
L2 (mm)
1
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,82
Incline Angle 1.0
7,08
Incline Angle 2.0
7,54
Incline Angle 3.0
8,06
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030120020080
IN STOCK
D1 (mm)
1,2
D2 (mm)
4
D3 (mm)
1,15
L3 (mm)
8
Radius
0,2
L2 (mm)
1
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,9
Incline Angle 1.0
9,21
Incline Angle 2.0
9,8
Incline Angle 3.0
10,48
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030120020120
IN STOCK
D1 (mm)
1,2
D2 (mm)
4
D3 (mm)
1,15
L3 (mm)
12
Radius
0,2
L2 (mm)
1
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,04
Incline Angle 1.0
13,45
Incline Angle 2.0
14,21
Incline Angle 3.0
15,3
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150015040
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
4
Radius
0,15
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,38
Incline Angle 1.0
4,7
Incline Angle 2.0
5,12
Incline Angle 3.0
5,47
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150015060
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
6
Radius
0,15
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,54
Incline Angle 1.0
6,89
Incline Angle 2.0
7,37
Incline Angle 3.0
7,88
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150015080
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
8
Radius
0,15
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,66
Incline Angle 1.0
9,04
Incline Angle 2.0
9,63
Incline Angle 3.0
10,3
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150015100
Out Of Stock
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
10
Radius
0,15
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,77
Incline Angle 1.0
11,17
Incline Angle 2.0
11,89
Incline Angle 3.0
12,71
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150015120
Out Of Stock
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
12
Radius
0,15
L2 (mm)
1,35
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
12,85
Incline Angle 1.0
13,29
Incline Angle 2.0
14,15
Incline Angle 3.0
15,13
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150015160
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
16
Radius
0,15
L2 (mm)
1,35
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
17,01
Incline Angle 1.0
17,53
Incline Angle 2.0
18,66
Incline Angle 3.0
19,95
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150015200
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
20
Radius
0,15
L2 (mm)
1,35
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,14
Incline Angle 1.0
21,78
Incline Angle 2.0
23,18
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020040
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
4
Radius
0,2
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,38
Incline Angle 1.0
4,7
Incline Angle 2.0
5,12
Incline Angle 3.0
5,47
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020060
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
6
Radius
0,2
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,54
Incline Angle 1.0
6,89
Incline Angle 2.0
7,37
Incline Angle 3.0
7,88
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020080
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
8
Radius
0,2
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,66
Incline Angle 1.0
9,04
Incline Angle 2.0
9,63
Incline Angle 3.0
10,3
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020100
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
10
Radius
0,2
L2 (mm)
1,35
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
10,77
Incline Angle 1.0
11,17
Incline Angle 2.0
11,89
Incline Angle 3.0
12,71
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020120
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
12
Radius
0,2
L2 (mm)
1,35
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
12,85
Incline Angle 1.0
13,29
Incline Angle 2.0
14,15
Incline Angle 3.0
15,13
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020140
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
14
Radius
0,2
L2 (mm)
1,35
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
14,93
Incline Angle 1.0
15,41
Incline Angle 2.0
16,41
Incline Angle 3.0
17,54
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020160
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
16
Radius
0,2
L2 (mm)
1,35
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
17,01
Incline Angle 1.0
17,53
Incline Angle 2.0
18,66
Incline Angle 3.0
19,95
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020180
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
18
Radius
0,2
L2 (mm)
1,35
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
19,07
Incline Angle 1.0
19,65
Incline Angle 2.0
80,92
Incline Angle 3.0
22,37
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030150020200
IN STOCK
D1 (mm)
1,5
D2 (mm)
4
D3 (mm)
1,44
L3 (mm)
20
Radius
0,2
L2 (mm)
1,35
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,14
Incline Angle 1.0
21,78
Incline Angle 2.0
23,18
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020040
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
4
Radius
0,2
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,81
Incline Angle 1.0
5
Incline Angle 2.0
5,34
Incline Angle 3.0
5,71
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020060
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
6
Radius
0,2
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,89
Incline Angle 1.0
7,14
Incline Angle 2.0
7,6
Incline Angle 3.0
8,12
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020080
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
8
Radius
0,2
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,97
Incline Angle 1.0
9,26
Incline Angle 2.0
9,85
Incline Angle 3.0
10,53
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020100
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
10
Radius
0,2
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
11,04
Incline Angle 1.0
11,38
Incline Angle 2.0
12,11
Incline Angle 3.0
12,95
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020120
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
12
Radius
0,2
L2 (mm)
1,7
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,1
Incline Angle 1.0
13,5
Incline Angle 2.0
14,37
Incline Angle 3.0
15,36
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020150
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
15
Radius
0,2
L2 (mm)
1,7
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,19
Incline Angle 1.0
16,68
Incline Angle 2.0
17,76
Incline Angle 3.0
18,98
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020200
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
20
Radius
0,2
L2 (mm)
1,7
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,34
Incline Angle 1.0
21,98
Incline Angle 2.0
23,4
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020250
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
25
Radius
0,2
L2 (mm)
1,7
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
26,48
Incline Angle 1.0
27,29
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200020300
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
30
Radius
0,2
L2 (mm)
1,7
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
31,,63
Incline Angle 1.0
32,59
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200050040
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
4
Radius
0,5
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
4,81
Incline Angle 1.0
5
Incline Angle 2.0
5,34
Incline Angle 3.0
5,71
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200050060
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
6
Radius
0,5
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
6,89
Incline Angle 1.0
7,14
Incline Angle 2.0
7,6
Incline Angle 3.0
8,12
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200050080
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
8
Radius
0,5
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
8,97
Incline Angle 1.0
9,26
Incline Angle 2.0
9,85
Incline Angle 3.0
10,53
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200050100
Out Of Stock
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
10
Radius
0,5
L2 (mm)
1,7
L1 (mm)
50
Coating
PACVD/NHC-7000
Incline Angle 0.5
11,04
Incline Angle 1.0
11,38
Incline Angle 2.0
12,11
Incline Angle 3.0
12,95
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200050120
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
12
Radius
0,5
L2 (mm)
1,7
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
13,1
Incline Angle 1.0
13,5
Incline Angle 2.0
14,37
Incline Angle 3.0
15,36
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200050150
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
15
Radius
0,5
L2 (mm)
1,7
L1 (mm)
55
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,19
Incline Angle 1.0
16,68
Incline Angle 2.0
17,76
Incline Angle 3.0
18,98
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030200050200
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1,92
L3 (mm)
20
Radius
0,5
L2 (mm)
1,7
L1 (mm)
60
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,34
Incline Angle 1.0
21,98
Incline Angle 2.0
23,4
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030300030100
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
10
Radius
0,3
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
11,07
Incline Angle 1.0
11,41
Incline Angle 2.0
12,15
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030300030150
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
15
Radius
0,3
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,22
Incline Angle 1.0
16,72
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030300030200
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
20
Radius
0,3
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
22,02
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030300030250
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
25
Radius
0,3
L2 (mm)
3
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
26,52
Incline Angle 1.0
27,32
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030300030300
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
30
Radius
0,3
L2 (mm)
3
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
32,4
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030300050150
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
15
Radius
0,5
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,22
Incline Angle 1.0
16,72
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030300050200
IN STOCK
D1 (mm)
3
D2 (mm)
4
D3 (mm)
2,9
L3 (mm)
20
Radius
0,5
L2 (mm)
3
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
22,02
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030400030100
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
10
Radius
0,3
L2 (mm)
4
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
11,07
Incline Angle 1.0
11,41
Incline Angle 2.0
12,15
Incline Angle 3.0
12,99
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030400030150
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
15
Radius
0,3
L2 (mm)
4
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
16,22
Incline Angle 1.0
16,72
Incline Angle 2.0
17,79
Incline Angle 3.0
19,02
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030400030200
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
20
Radius
0,3
L2 (mm)
4
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
23,44
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030400030250
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
25
Radius
0,3
L2 (mm)
4
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
26,52
Incline Angle 1.0
27,32
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030400030300
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
30
Radius
0,3
L2 (mm)
4
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
31,67
Incline Angle 1.0
32,63
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030400050200
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
20
Radius
0,5
L2 (mm)
4
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
23,44
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030400050300
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3,9
L3 (mm)
30
Radius
0,5
L2 (mm)
4
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
31,67
Incline Angle 1.0
32,63
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030500030200
IN STOCK
D1 (mm)
5
D2 (mm)
6
D3 (mm)
4,9
L3 (mm)
20
Radius
0,3
L2 (mm)
5
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
21,37
Incline Angle 1.0
22,02
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030500030300
IN STOCK
D1 (mm)
5
D2 (mm)
6
D3 (mm)
4,9
L3 (mm)
30
Radius
0,3
L2 (mm)
5
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
31,67
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030500030400
IN STOCK
D1 (mm)
5
D2 (mm)
6
D3 (mm)
4,9
L3 (mm)
40
Radius
0,3
L2 (mm)
5
L1 (mm)
90
Coating
PACVD/NHC-7000
Incline Angle 0.5
41,96
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030600030200
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
20
Radius
0,3
L2 (mm)
6
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030600030300
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
30
Radius
0,3
L2 (mm)
6
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030600030400
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
40
Radius
0,3
L2 (mm)
6
L1 (mm)
90
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030600030500
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
50
Radius
0,3
L2 (mm)
6
L1 (mm)
90
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030600050200
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
20
Radius
0,5
L2 (mm)
6
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030600050300
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
30
Radius
0,5
L2 (mm)
6
L1 (mm)
75
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
Product Code
3062030600100250
IN STOCK
D1 (mm)
6
D2 (mm)
6
D3 (mm)
5,9
L3 (mm)
25
Radius
1
L2 (mm)
6
L1 (mm)
65
Coating
PACVD/NHC-7000
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Slot Cutters
Z (Cutting Edges)
2
