Compatible Materials
Aluminum
Aluminum
Brass
Brass
Copper
Copper
Gold
Gold
Tin
Tin
Features
NHC 7000
NHC 7000
Micro Grain
Micro Grain
Special Cutting Form
Special Cutting Form
30 Degree Helix Angle
30 Degree Helix Angle
Short Cutting Length
Short Cutting Length
Mill Direction
Mill Direction
Drilling & Milling
Drilling & Milling
Karnasch Norm
Karnasch Norm
DIN 6535 Form HA
DIN 6535 Form HA
90 Degree Drill Point Angle
90 Degree Drill Point Angle
Liquid Cooling
Liquid Cooling
High Speed Cutting
High Speed Cutting

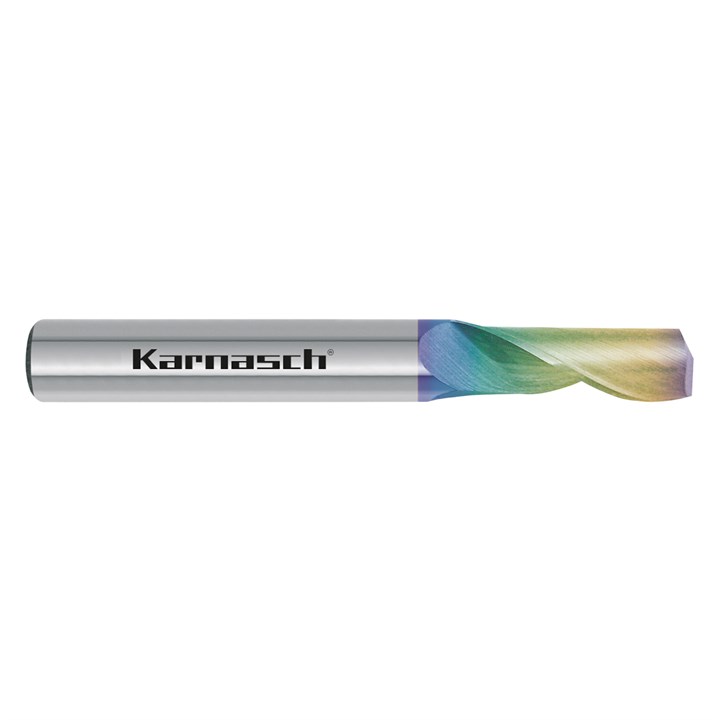

Solid Carbide One Tooth End Mill, Right-hand Spiral and Cutting
Solid Carbide One Tooth End Mill, Right-hand Spiral and Cutting
307320_P
129 IN STOCK
-
+
Solid Carbide One Tooth End Mill, Right-hand Spiral and Cutting
Solid Carbide One Tooth End Mill, Right-hand Spiral and Cutting
307320_P

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter your name

Please enter your company name

Please select a Country

Please enter a Contact NumberPlease enter a valid Contact Number, the maximum length Is 30 charactersPlease enter a valid Contact Number consisting only Of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Quantity is requiredQuantity too largeQuantity must be an integer numberQuantity must be greater than 0

Date is requiredValid date format is: dd-mm - yyyyDate must not be in the past

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Solid Carbide One Tooth End Mill, Right-hand Spiral and Cutting

307320_P
More details on catalogue page number 28 -  Click to view
Solid Carbide One Tooth End Mill, Right-hand Spiral and Cutting
Solid Carbide One Tooth End Mill, Right-hand Spiral and Cutting
From €29.00 Excl VAT
Loading Variations
-
+
Solid carbide one-tooth end mill, right spiral, right cutting.
Read full description
Product Description

Solid carbide one-tooth end mill, right spiral, right cutting.

NHC-7000 Coating

Best machining results in all non-ferrous metals, plastics and CFRP/GFRP.

  • Coating technology: PACVD Plasma Assisted Chemical Vapour Deposition
  • Micro hardness: 7000 HV0.05
  • Coating material: DLC
  • Coating thickness: <0.7µ
  • Max. operating temperature: 900 degrees C

This outstanding NHC-7000 coating simplifies the processing of non-ferrous metals, plastics and GRP/CRP. The very thin, very smooth and extremely hard coating enables exceptional tool life and surfaces, even with aluminum >6% Si.
