Arbor for Mini-Cut Hole Saw, 6-20mm

210002 | 185 IN STOCK
€14.10 Excl VAT (RRP €14.10 incl VAT)
185 IN STOCK
-
+
Arbor for hole saw mini-cut hole saw for the diameter of diameter 6-20 mm. Hex shank 9,5 mm (3/8") this arbor is supplied with all flat washers. center punch the work piece. It is important to set a strong center mark.

    Product Description

    Arbor for hole saw MINI-CUT hole saw for the diameter of Diameter 6-20 mm.

    Hex shank 9,5 mm (3/8")

    This arbor is supplied with all flat washers.

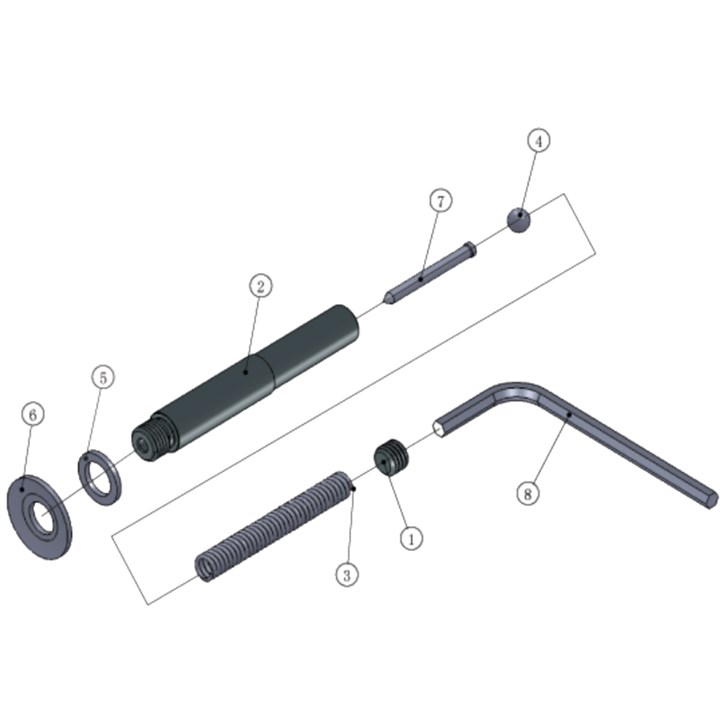

    USAGE:

    1. Center punch the work piece. It is important to set a strong center mark. (Especially if using handheld machines)
    2. Place the ejector pin 1 exactly in the middle of the strong center mark. Use little pressure (feed-rate) until you reach approximately 0,5 mm cutting depth. The drill is self-centered now. Feed rate can be increased.
    3. An ejector spring 2 which is installed in the arbor puts pressure on the ejection pin 1.
    4. To adjust the cutting depth and spring force turn the Allen screw with the Allen key 3 clockwise ((Adjusting the cutting depth for drilling of spot welded sheets is only possible with arbor Art. ART. 210002).
    5. The ejector pin 1 ejects the core 4 after drilling process.
