KATV 140 Magnetic Drill KATV Blue-Mag, Heavy Duty Twin Rail Slide System, Variable Speed and Sensor

208032_P

Best Seller

KATV 140 Magnetic Drill KATV Blue-Mag, Heavy Duty Twin Rail Slide System, Variable Speed and Sensor KATV 140 Magnetic Drill KATV Blue-Mag, Heavy Duty Twin Rail Slide System, Variable Speed and Sensor
From €4202.05 Excl VAT (RRP €4202.05 incl VAT)
-
+
Hole cutting machine katv 140 blue-mag with heavy-duty twin rail slide system, variable speed and sensor advantages up to 10 times better stability. Extremely tight tolerances of the slide through the round twin rail system. The slide has no contact with the main body of the machine.

    Product Description

    Selected top products at reduced prices

    Karnasch BESTSELLER products are selected products with greatly reduced list prices. These products represent some of our most popular products. We're passing on the savings in production costs to our customers. That makes these products exceptional value.

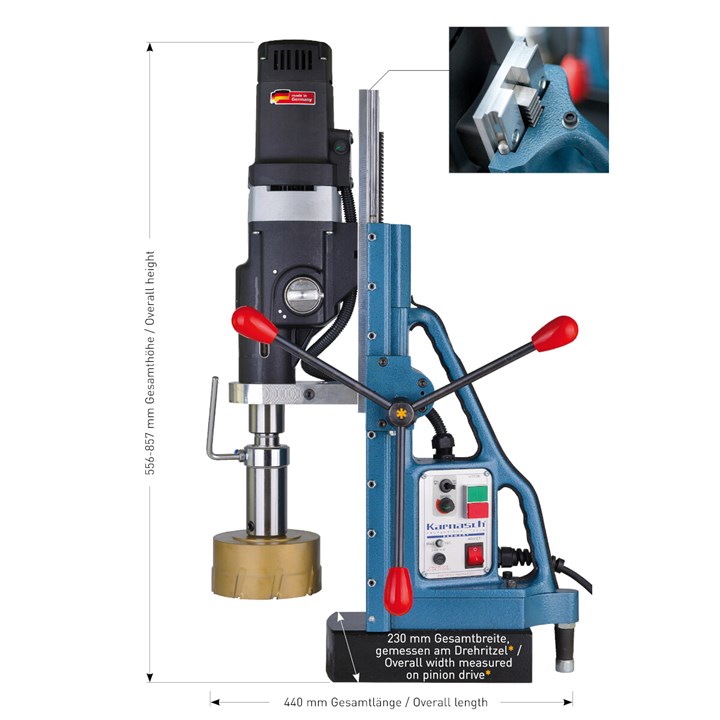

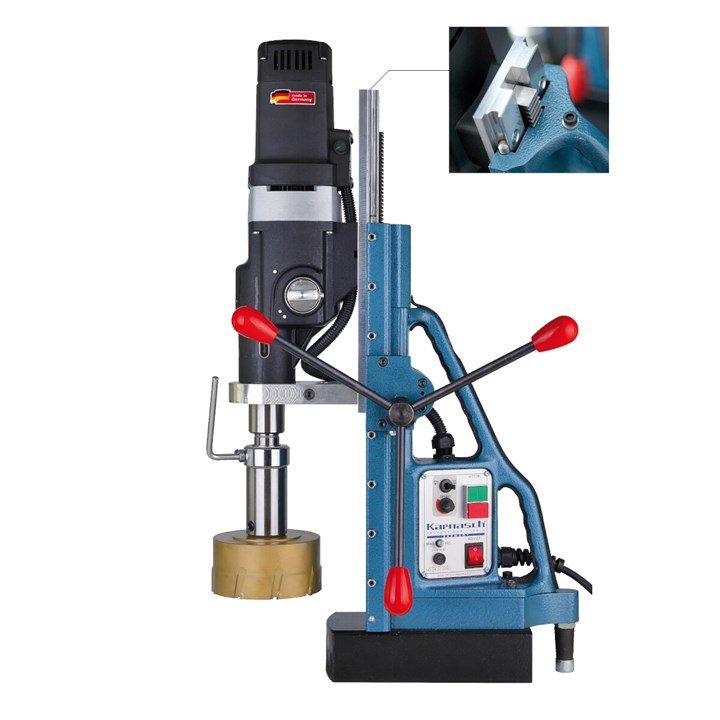

    Hole cutting machine KATV 140 Blue-Mag with HEAVY-DUTY Twin Rail Slide System, variable speed and Sensor

    Advantages

    • Up to 10 times better stability.
    • Extremely tight tolerances of the slide through the round Twin Rail system.
    • The slide has no contact with the main body of the machine. The whole construction is
      connected only by the highly precise and extremely stable rail system.
      • Reduced friction / less wear
      • Low maintenance / better reliability

    Result

    • Improved cutter life
    • Reduced cutter breakage
    • Improved hole tolerances
    • Improved hole surface quality
    • Up to 110 mm cutting depth possible already with small machines

    THE NEW MAG-TEC SENSOR:

    The sensor detects how well the magnet keeps the machine on the ground.

    • It is directly connected to the engine.
    • If the sensor is illuminating "RED" , the ground is dirty (rust, varnish residues, chips), the material is thinner than 6 mm or the feed rate is to high.
    • The machine does not have a safe stand. The engine does not start or turns off.
    • If the sensor is illuminating "GREEN", the magnetic holding force is optimal and the use of the machine is safe.

    Core drilling Diameter 12 - 140 mm

    Twist drilling Diameter 3 - 50 mm

    Countersinking Diameter 10 - 80 mm

    Reaming Diameter 6 - 52 mm

    Tapping Diameter 6 - 44 mm
