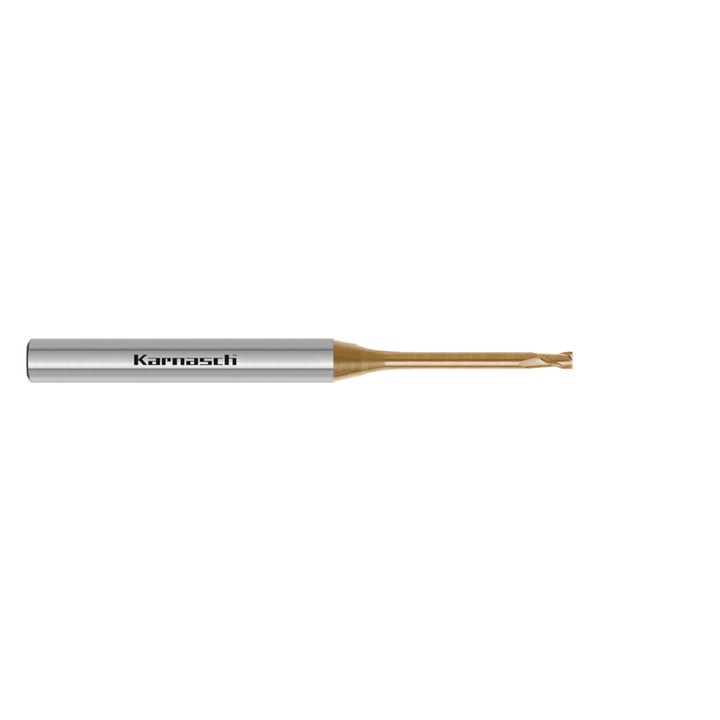

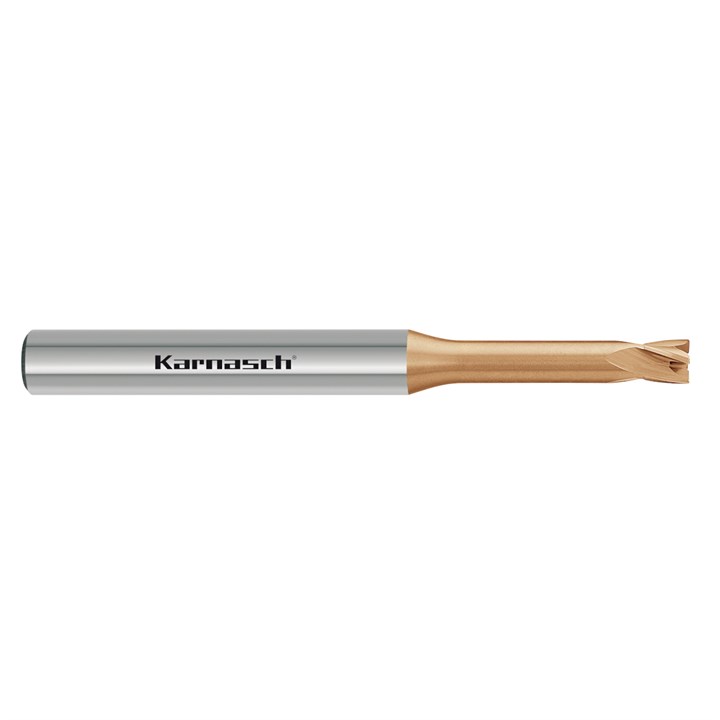

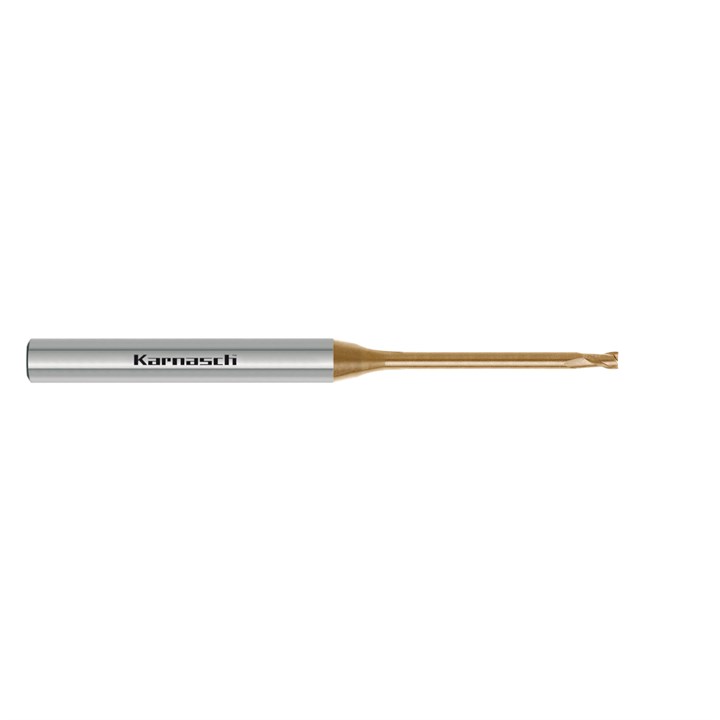

Solid Carbide End Mills, Corner Radius, Short, Rockwell Cutter
306267_P
More details on catalogue page number 80 - Click to view
€0.00
From €61.20 Excl VAT
Live prices currently unavailable, list price shown.
Solid carbide end mills with corner radius, short, rockwell cutter.
Product Description
Solid carbide end mills with corner radius, short, Rockwell cutter.
HXC-NANO4; Coating

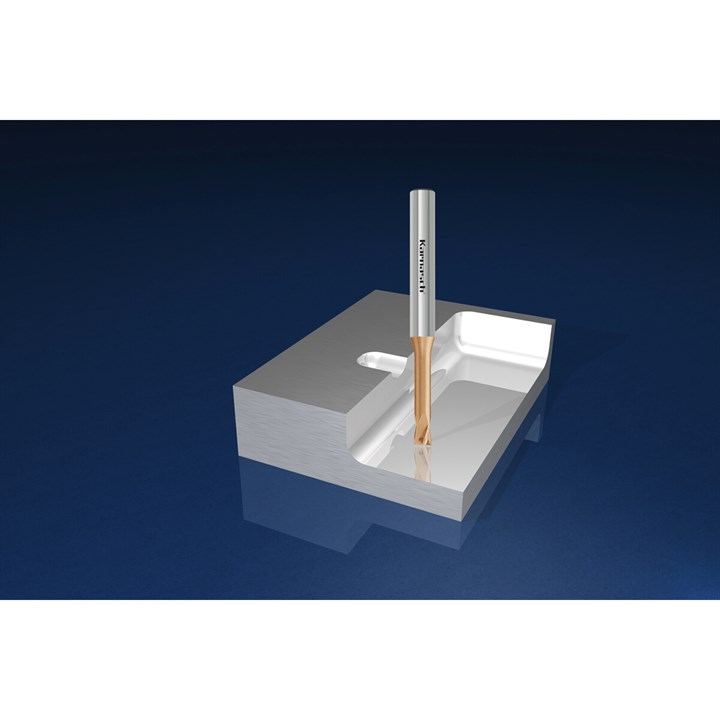

For the machining of hardened steels up to 70 HRC / stainless steels and titanium.
- Coating technology: Sputtering
- Micro hardness: 3800 HV0.05
- Coating material: TiAlSiN based
- Coating thickness: Diameter-related
- Max. operating temperature: 1100 degrees C
The silicon doping gives HXC-NANO4; a particularly high hardness and oxidation resistance. The special coating process achieves very smooth surfaces and improved coating adhesion, which are ideal for the machining of hardened steels, stainless steels or titanium.
Product Downloads
There are no download types with downloads for this product.
Related Products
No related products
Alternative Products
Sale Article
306432120010024
Extreme rapid cutter steel < n/mm2.
€45.31 Excl VAT
306205_P
Solid carbide toric end mills with polished flutes, 2xd, extra long tapered neck.
From €11.40 Excl VAT
306265_P
Micro end mill with corner radius, conical neck, 0,4 degrees, 0,9 degrees, 1,4 degrees, 1,9 degrees > 35xd.
From €28.80 Excl VAT
306268_P
Solid carbide end mills with corner radius, short, rockwell cutter.
From €28.20 Excl VAT
306425_P
Solid carbide end mill with corner radius, extra long.
From €120.10 Excl VAT
306433_P
Solid carbide, high performance end mill < 60 hrc.
From €66.00 Excl VAT
306434_P
Solid carbide end mill with corner radius, short, rockwell cutter.
From €15.91 Excl VAT
306435_P
Solid carbide end mill with corner radius, extra long, rockwell cutter.
From €16.80 Excl VAT
Product Code
D1 (mm)
D2 (mm)
D3 (mm)
L3 (mm)

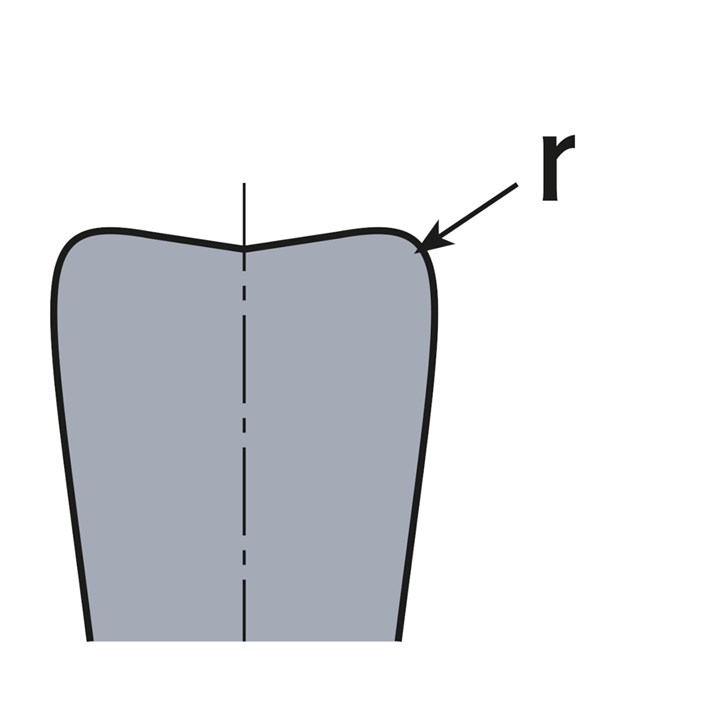

Radius
L2 (mm)
L1 (mm)
Coating
Incline Angle 0.5
Incline Angle 1.0
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
R2 - Neck to Shank
Version
Z (Cutting Edges)
Product Code
306267010000504
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
4
Radius
0.05
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
4.75
Incline Angle 1.0
4.95
Incline Angle 2.0
5.3
Incline Angle 3.0
5.66
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010000506
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
6
Radius
0.05
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
6.84
Incline Angle 1.0
7.08
Incline Angle 2.0
7.55
Incline Angle 3.0
8.08
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010000508
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
8
Radius
0.05
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
8.92
Incline Angle 1.0
9.22
Incline Angle 2.0
9.81
Incline Angle 3.0
10.49
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010000510
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
10
Radius
0.05
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
10.99
Incline Angle 1.0
11.34
Incline Angle 2.0
12.07
Incline Angle 3.0
12.9
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010000512
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
12
Radius
0.05
L2 (mm)
0.8
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.06
Incline Angle 1.0
13.46
Incline Angle 2.0
14.33
Incline Angle 3.0
15.32
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010000516
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
16
Radius
0.05
L2 (mm)
0.8
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.18
Incline Angle 1.0
17.7
Incline Angle 2.0
18.85
Incline Angle 3.0
20.15
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010000520
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
20
Radius
0.05
L2 (mm)
0.8
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.3
Incline Angle 1.0
21.95
Incline Angle 2.0
23.36
Incline Angle 3.0
24.97
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010001004
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
4
Radius
0.1
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
4.75
Incline Angle 1.0
4.95
Incline Angle 2.0
5.3
Incline Angle 3.0
5.66
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010001006
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
6
Radius
0.1
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
6.84
Incline Angle 1.0
7.08
Incline Angle 2.0
7.55
Incline Angle 3.0
8.08
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010001008
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
8
Radius
0.1
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
8.92
Incline Angle 1.0
9.22
Incline Angle 2.0
9.81
Incline Angle 3.0
10.49
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010001010
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
10
Radius
0.1
L2 (mm)
0.8
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
10.99
Incline Angle 1.0
11.34
Incline Angle 2.0
12.07
Incline Angle 3.0
12.9
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010001012
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
12
Radius
0.1
L2 (mm)
0.8
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.06
Incline Angle 1.0
13.46
Incline Angle 2.0
14.33
Incline Angle 3.0
15.32
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010001016
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
16
Radius
0.1
L2 (mm)
0.8
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.18
Incline Angle 1.0
17.71
Incline Angle 2.0
18.85
Incline Angle 3.0
20.15
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267010001020
IN STOCK
D1 (mm)
1
D2 (mm)
4
D3 (mm)
0.94
L3 (mm)
20
Radius
0.1
L2 (mm)
0.8
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.3
Incline Angle 1.0
21.95
Incline Angle 2.0
23.36
Incline Angle 3.0
24.97
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267015001004
IN STOCK
D1 (mm)
1.5
D2 (mm)
4
D3 (mm)
1.42
L3 (mm)
4
Radius
0.1
L2 (mm)
1.35
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
4.8
Incline Angle 1.0
5
Incline Angle 2.0
5.33
Incline Angle 3.0
5.7
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267015001008
IN STOCK
D1 (mm)
1.5
D2 (mm)
4
D3 (mm)
1.42
L3 (mm)
8
Radius
0.1
L2 (mm)
1.35
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
8.96
Incline Angle 1.0
9.25
Incline Angle 2.0
9.86
Incline Angle 3.0
10.53
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267015001012
IN STOCK
D1 (mm)
1.5
D2 (mm)
4
D3 (mm)
1.42
L3 (mm)
12
Radius
0.1
L2 (mm)
1.35
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.1
Incline Angle 1.0
13.5
Incline Angle 2.0
14.37
Incline Angle 3.0
15.36
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267015001015
IN STOCK
D1 (mm)
1.5
D2 (mm)
4
D3 (mm)
1.42
L3 (mm)
15
Radius
0.1
L2 (mm)
1.35
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
16.19
Incline Angle 1.0
16.68
Incline Angle 2.0
17.75
Incline Angle 3.0
18.98
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267015001020
IN STOCK
D1 (mm)
1.5
D2 (mm)
4
D3 (mm)
1.42
L3 (mm)
20
Radius
0.1
L2 (mm)
1.35
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.33
Incline Angle 1.0
21.98
Incline Angle 2.0
23.4
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020000504
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
4
Radius
0.05
L2 (mm)
1.7
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
4.8
Incline Angle 1.0
5
Incline Angle 2.0
5.33
Incline Angle 3.0
5.7
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020000508
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
8
Radius
0.05
L2 (mm)
1.7
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
8.96
Incline Angle 1.0
9.26
Incline Angle 2.0
9.85
Incline Angle 3.0
10.67
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020000512
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
12
Radius
0.05
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.1
Incline Angle 1.0
13.5
Incline Angle 2.0
14.37
Incline Angle 3.0
15.36
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020000516
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
16
Radius
0.05
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.22
Incline Angle 1.0
17.74
Incline Angle 2.0
18.88
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020000520
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
20
Radius
0.05
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.33
Incline Angle 1.0
21.98
Incline Angle 2.0
23.4
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020001004
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
4
Radius
0.1
L2 (mm)
1.7
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
4.8
Incline Angle 1.0
5
Incline Angle 2.0
5.33
Incline Angle 3.0
5.7
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020001008
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
8
Radius
0.1
L2 (mm)
1.7
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
8.96
Incline Angle 1.0
9.26
Incline Angle 2.0
9.85
Incline Angle 3.0
10.67
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020001012
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
12
Radius
0.1
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.1
Incline Angle 1.0
13.5
Incline Angle 2.0
14.37
Incline Angle 3.0
15.36
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020001016
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
16
Radius
0.1
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.22
Incline Angle 1.0
17.74
Incline Angle 2.0
18.88
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020001020
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
20
Radius
0.1
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.33
Incline Angle 1.0
21.98
Incline Angle 2.0
23.4
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020002004
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
4
Radius
0.2
L2 (mm)
1.7
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
4.8
Incline Angle 1.0
5
Incline Angle 2.0
5.33
Incline Angle 3.0
5.7
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020002008
Out Of Stock
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
8
Radius
0.2
L2 (mm)
1.7
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
8.96
Incline Angle 1.0
9.26
Incline Angle 2.0
9.85
Incline Angle 3.0
10.67
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020002012
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
12
Radius
0.2
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.1
Incline Angle 1.0
13.5
Incline Angle 2.0
14.37
Incline Angle 3.0
15.36
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020002016
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
16
Radius
0.2
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.22
Incline Angle 1.0
17.74
Incline Angle 2.0
18.88
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267020002020
IN STOCK
D1 (mm)
2
D2 (mm)
4
D3 (mm)
1.92
L3 (mm)
20
Radius
0.2
L2 (mm)
1.7
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.33
Incline Angle 1.0
21.98
Incline Angle 2.0
23.4
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267025001008
IN STOCK
D1 (mm)
2.5
D2 (mm)
4
D3 (mm)
2.4
L3 (mm)
8
Radius
0.1
L2 (mm)
2
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
9
Incline Angle 1.0
9.29
Incline Angle 2.0
9.89
Incline Angle 3.0
10.57
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267025001016
IN STOCK
D1 (mm)
2.5
D2 (mm)
4
D3 (mm)
2.4
L3 (mm)
16
Radius
0.1
L2 (mm)
2
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.25
Incline Angle 1.0
17.77
Incline Angle 2.0
18.92
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267025001020
IN STOCK
D1 (mm)
2.5
D2 (mm)
4
D3 (mm)
2.4
L3 (mm)
20
Radius
0.1
L2 (mm)
2
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.37
Incline Angle 1.0
22.01
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267025002008
IN STOCK
D1 (mm)
2.5
D2 (mm)
4
D3 (mm)
2.4
L3 (mm)
8
Radius
0.2
L2 (mm)
2
L1 (mm)
50
Coating
HXC-Nano4
Incline Angle 0.5
9
Incline Angle 1.0
9.29
Incline Angle 2.0
9.89
Incline Angle 3.0
10.57
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267025002016
IN STOCK
D1 (mm)
2.5
D2 (mm)
4
D3 (mm)
2.4
L3 (mm)
16
Radius
0.2
L2 (mm)
2
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.25
Incline Angle 1.0
17.77
Incline Angle 2.0
18.92
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267025002020
IN STOCK
D1 (mm)
2.5
D2 (mm)
4
D3 (mm)
2.4
L3 (mm)
20
Radius
0.2
L2 (mm)
2
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.37
Incline Angle 1.0
22.01
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030002008
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
8
Radius
0.2
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
9.08
Incline Angle 1.0
9.36
Incline Angle 2.0
9.96
Incline Angle 3.0
10.65
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030002012
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
12
Radius
0.2
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.2
Incline Angle 1.0
13.6
Incline Angle 2.0
14.48
Incline Angle 3.0
15.48
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030002016
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
16
Radius
0.2
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.32
Incline Angle 1.0
17.84
Incline Angle 2.0
18.99
Incline Angle 3.0
20.31
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030002020
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
20
Radius
0.2
L2 (mm)
2.5
L1 (mm)
70
Coating
HXC-Nano4
Incline Angle 0.5
21.34
Incline Angle 1.0
22.08
Incline Angle 2.0
23.51
Incline Angle 3.0
25.13
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030002025
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
25
Radius
0.2
L2 (mm)
2.5
L1 (mm)
70
Coating
HXC-Nano4
Incline Angle 0.5
26.58
Incline Angle 1.0
27.38
Incline Angle 2.0
29.15
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030002030
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
30
Radius
0.2
L2 (mm)
2.5
L1 (mm)
80
Coating
HXC-Nano4
Incline Angle 0.5
31.73
Incline Angle 1.0
32.69
Incline Angle 2.0
34.8
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030003008
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
8
Radius
0.3
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
9.08
Incline Angle 1.0
9.36
Incline Angle 2.0
9.96
Incline Angle 3.0
10.65
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030003012
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
12
Radius
0.3
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.2
Incline Angle 1.0
13.6
Incline Angle 2.0
14.48
Incline Angle 3.0
15.48
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030003016
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
16
Radius
0.3
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.32
Incline Angle 1.0
17.84
Incline Angle 2.0
18.99
Incline Angle 3.0
20.31
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030003020
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
20
Radius
0.3
L2 (mm)
2.5
L1 (mm)
70
Coating
HXC-Nano4
Incline Angle 0.5
21.43
Incline Angle 1.0
22.08
Incline Angle 2.0
23.51
Incline Angle 3.0
25.13
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030003025
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
25
Radius
0.3
L2 (mm)
2.5
L1 (mm)
70
Coating
HXC-Nano4
Incline Angle 0.5
26.58
Incline Angle 1.0
27.39
Incline Angle 2.0
29.15
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030003030
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
30
Radius
0.3
L2 (mm)
2.5
L1 (mm)
80
Coating
HXC-Nano4
Incline Angle 0.5
31.73
Incline Angle 1.0
32.69
Incline Angle 2.0
34.8
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030005008
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
8
Radius
0.5
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
9.08
Incline Angle 1.0
9.36
Incline Angle 2.0
9.96
Incline Angle 3.0
10.65
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030005012
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
12
Radius
0.5
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.2
Incline Angle 1.0
13.6
Incline Angle 2.0
14.48
Incline Angle 3.0
15.48
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030005016
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
16
Radius
0.5
L2 (mm)
2.5
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
17.32
Incline Angle 1.0
17.84
Incline Angle 2.0
18.99
Incline Angle 3.0
20.31
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030005020
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
20
Radius
0.5
L2 (mm)
2.5
L1 (mm)
70
Coating
HXC-Nano4
Incline Angle 0.5
21.43
Incline Angle 1.0
22.08
Incline Angle 2.0
23.51
Incline Angle 3.0
25.13
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030005025
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
25
Radius
0.5
L2 (mm)
2.5
L1 (mm)
70
Coating
HXC-Nano4
Incline Angle 0.5
26.58
Incline Angle 1.0
27.39
Incline Angle 2.0
29.15
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267030005030
IN STOCK
D1 (mm)
3
D2 (mm)
6
D3 (mm)
2.86
L3 (mm)
30
Radius
0.5
L2 (mm)
2.5
L1 (mm)
80
Coating
HXC-Nano4
Incline Angle 0.5
31.73
Incline Angle 1.0
32.69
Incline Angle 2.0
34.8
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040002012
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
12
Radius
0.2
L2 (mm)
4
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.13
Incline Angle 1.0
13.53
Incline Angle 2.0
14.4
Incline Angle 3.0
15.4
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040002020
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
20
Radius
0.2
L2 (mm)
4
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.37
Incline Angle 1.0
22.01
Incline Angle 2.0
23.43
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040002030
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
30
Radius
0.2
L2 (mm)
4
L1 (mm)
80
Coating
HXC-Nano4
Incline Angle 0.5
31.66
Incline Angle 1.0
32.62
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040002040
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
40
Radius
0.2
L2 (mm)
4
L1 (mm)
80
Coating
HXC-Nano4
Incline Angle 0.5
41.96
Incline Angle 1.0
43.23
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040005012
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
12
Radius
0.5
L2 (mm)
4
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
13.13
Incline Angle 1.0
13.53
Incline Angle 2.0
14.4
Incline Angle 3.0
15.4
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040005020
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
20
Radius
0.5
L2 (mm)
4
L1 (mm)
60
Coating
HXC-Nano4
Incline Angle 0.5
21.37
Incline Angle 1.0
22.01
Incline Angle 2.0
23.43
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040005030
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
30
Radius
0.5
L2 (mm)
4
L1 (mm)
80
Coating
HXC-Nano4
Incline Angle 0.5
31.66
Incline Angle 1.0
32.62
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
Product Code
306267040005040
IN STOCK
D1 (mm)
4
D2 (mm)
6
D3 (mm)
3.9
L3 (mm)
40
Radius
0.5
L2 (mm)
4
L1 (mm)
80
Coating
HXC-Nano4
Incline Angle 0.5
41.96
Incline Angle 1.0
43.23
Incline Angle 2.0
Incline Angle 3.0
Metric / Imp.
Metric
R2 - Neck to Shank
4
Version
Circumference Cutters
Z (Cutting Edges)
4
